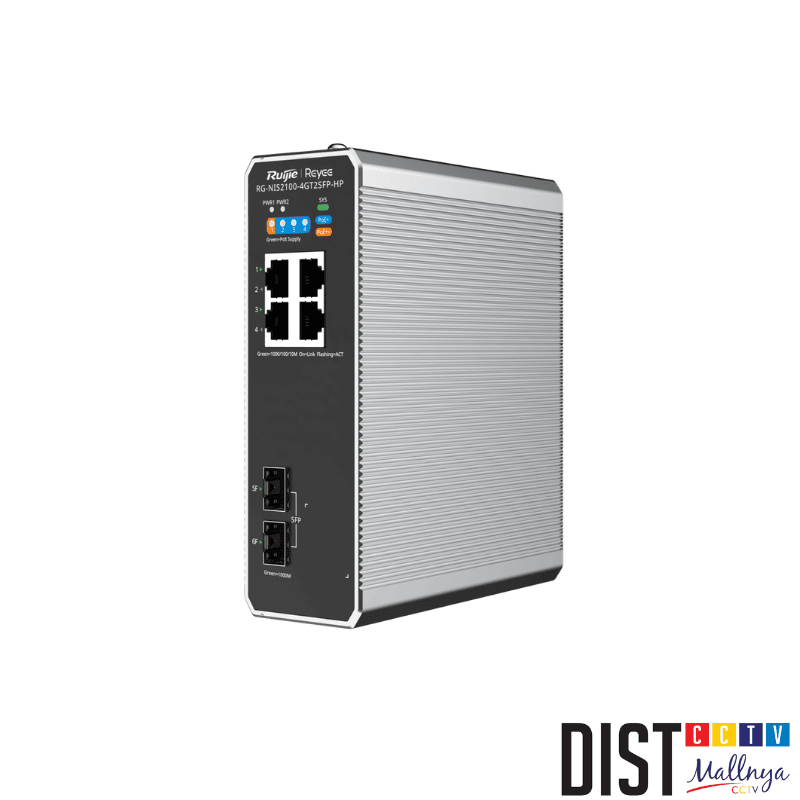

6-Port Gigabit Cloud Managed Layer 2 Industrial Switch, with 2 x SFP ports, IP40, 5 Years Warranty
4 x 10/100/1000Mbps ports, 3 PoE/PoE+ (30W) ports and 1 PoE++ port (60W), Max. budget 180W
Max. 16 VLANs, Dual DC power supply support, operation tempreture: -40℃ - 75℃, DIN-Rail installation
Support ERPS, Ports isolation, Camera detection, PoE Watchdog, SON, Cloud/Eweb/App management
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
6-Port Gigabit Cloud Managed Layer 2 Industrial Switch, with 2 x SFP ports, IP40, 5 Years Warranty
4 x 10/100/1000Mbps ports, 3 PoE/PoE+ (30W) ports and 1 PoE++ port (60W), Max. budget 180W
Max. 16 VLANs, Dual DC power supply support, operation tempreture: -40℃ - 75℃, DIN-Rail installation
Support ERPS, Ports isolation, Camera detection, PoE Watchdog, SON, Cloud/Eweb/App management
1000BASE-LX mini GBIC (1310nm), 10km, industrial design Operation tempreture -40 - 85℃, support DDM, Hot swap, 5 Years Warranty
6-Port 100Mbps, 4 of the ports support PoE/PoE+ power supply. Max PoE power budget is 54W, Steel Case
AX1800 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 15.5 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
5-Port Gigabit Smart Cloud Mananged PoE Switch, 1 RJ45 uplink port, 3 Years Warranty
4 x 10/100/1000Mbps PoE+ ports, Max. budget 54Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
10-Port Gigabit Cloud Managed Router, Max. 9 WAN, 4 * 10/100/1000Mbps ports, 4 * 10/100/1000/2500 Mbps ports, 2
* 10G SFP+ ports
Max. bandwidth 3000Mbps, SD-WAN throughput 1100Mbps, at most 300 branches
CPU 1.8GHz * 4 core processors, RAM 2GB, Flash 256MB, recommended 700 concurrent users, Max. 150,000 concurrent
sessions.
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open/WireGuard VPN, Inter-VLAN routing,
DHCP server, PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF, BGP
8-Port Gigabit Smart Cloud Mananged Switch, 3 Years Warranty
8 x 10/100/1000Mbps ports, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
BE3600 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @688Mbps, 5 GHz: 5dBi @2882Mbps, Max. 8 SSID
1× 2.5G/Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 14 Watts
TX power: 2.4GHz @27dBm, 5GHz @25dBm
Max. STAs: 256, recommended STAs: 100 STAs
Support MLO, MRU, Preamble Puncturing, 4K QAM, Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x,
SNMP, Router mode, Standalone Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
24-Port Gigabit unmanaged Switch, 24 Gigabit RJ45 Ports ,Steel Case
6-Port Gigabit Smart Cloud Mananged PoE Switch, 2 uplink with 1 SFP combo port, 3 Years Warranty
4 x 10/100/1000Mbps PoE+ ports, Max. budget 54Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
1-port PoE adapter (1000Base-T, 802.3af)
24-Port Gigabit Layer 2+ Cloud Managed PoE+ Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
24 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
Passive PoE adapter for Wireless Bridge, without power cord, 1*10/100M, 24V/0.5A, 12W, Compatible for RG-EST310 V2，RG-AirMetro460F.
AC1300 Wave 2 Dual band (2.4GHz&5GHz) indoor access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
2× 10/100/1000Mbps LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 13 Watts
TX power: 2.4GHz @20dBm, 5GHz @20dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA2, Router mode, Mesh, Captive portal, Master AP in Selforganizing Network , Cloud/Eweb/APP management
8-Port 100Mbps + 2 Uplink Port 1000Mbps, 8 of the ports support PoE/PoE+ power supply. Max PoE power budget is 110W, Steel Case
1-port PoE adapter (1000Base-T, PoE+/ 802.3at)
10GBASE-SR, SFP+ Transceiver, MM (850nm, 300m, LC
