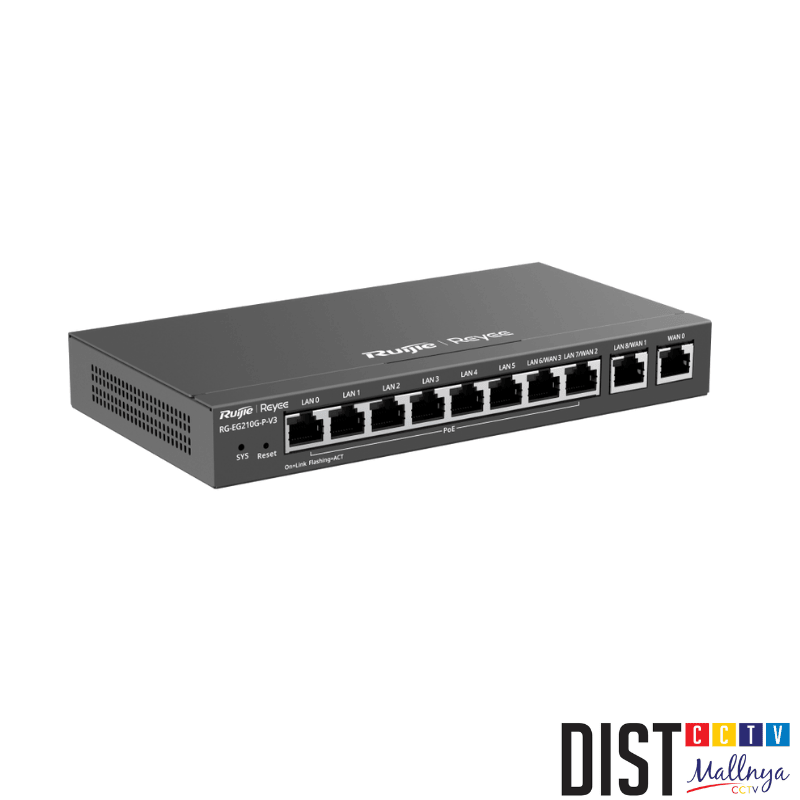

10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 8 PoE ports, budget 110W
CPU 880MHz * 2, RAM 256MB, Flash 32MB, recommended 200 concurrent users
Max. bandwidth 1000Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 8 PoE ports, budget 110W
CPU 880MHz * 2, RAM 256MB, Flash 32MB, recommended 200 concurrent users
Max. bandwidth 1000Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
8-Port 100Mbps + 2 Uplink Port 1000Mbps, 8 of the ports support PoE/PoE+ power supply. Max PoE power budget is 110W, Steel Case
24-Port Gigabit Layer 2 Cloud Managed Switch, with 4 x SFP ports, 5 Years Warranty
24 x 10/100/1000Mbps ports, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
AC/DC 240W DIN-Rail Power Supply for industrial switch, support both NIS2 and NIS3 series
10-Port Gigabit Layer 2 Cloud Managed PoE+ Switch, with 2 x SFP ports, 5 Years Warranty
8 x 10/100/1000Mbps PoE+ ports, Max. budget 125 Watts, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
6-Port Gigabit Cloud Managed Layer 2 Industrial Switch, with 2 x SFP ports, IP40, 5 Years Warranty
4 x 10/100/1000Mbps ports, 3 PoE/PoE+ (30W) ports and 1 PoE++ port (60W), Max. budget 180W
Max. 16 VLANs, Dual DC power supply support, operation tempreture: -40℃ - 75℃, DIN-Rail installation
Support ERPS, Ports isolation, Camera detection, PoE Watchdog, SON, Cloud/Eweb/App management
Code M, SD-WAN license apply for EG1510XS Series, 1 device, 1 year. RMA supported
HQ+Branches lower than 4, free license
Apply models:
EG1510XS
Wireless bridge base station, 5GHz 867Mbps, IP55, can be used with external antennas, 2*10/100/1000M ports,1*12V DC port, supports installated with antenna, and one station supports up to 32 CPEs
AC1200 Wave 2 Dual band (2.4GHz&5GHz) indoor access points, 2x2 MU-MIMO
2.4 GHz: 4dBi @300Mbps, 5 GHz: 6dBi @867Mbps, Max. 32 SSID
1× 10/100/1000Mbps LAN Ports (PoE-In), 1 console port, 803af/at PoE, DC 12V/1.5A, power consumption < 13 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 256, recommended STAs: 64 STAs
Support Beamforming, Layer2/3 roaming, Radius, WPA2, SNMP, Router mode, Mesh, Captive portal, Master AP in Selforganizing Network , Cloud/Eweb/APP management
6-Port 2.5Gig Smart Cloud Mananged PoE Switch, 1 * SFP+ and 1 * 2.5G uplink, 3 Years Warranty
4 x 10/100/1000/2500Mbps PoE+ ports, Max. budget 70Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
1-port PoE adapter (25000Base-T, 50V, 60W), applies to RG-RAP2260(H), RG-RAP73HD, RG-RAP6260(H)
48-Port Gigabit Layer 2 Cloud Managed PoE+ Switch, with 4 x SFP ports, 5 Years Warranty
48 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
24-Port Gigabit Layer 2 Cloud Managed PoE+ Switch, with 4 x SFP ports, 5 Years Warranty
24 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
24-Port Gigabit Layer 2+ Cloud Managed Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
24 x 10/100/1000Mbps ports, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
1000BASE-LX mini GBIC (1310nm), 10km, industrial design Operation tempreture -40 - 85℃, support DDM, Hot swap, 5 Years Warranty
AC1300 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP65
2.4 GHz: 3dBi @400Mbps, 5 GHz: 4dBi @867Mbps, Max. 8 SSID
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE / 24V Passive PoE, power consumption< 13.5W
TX power: 2.4GHz @22dBm, 5GHz @21dBm
Max. STAs: 110, recommended STAs: 80 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
5-Port Gigabit Cloud Managed Router, Max. 2 x Gigabit WAN
CPU 880MHz * 2, RAM 128MB, Flash 32MB, recommended 100 concurrent users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
