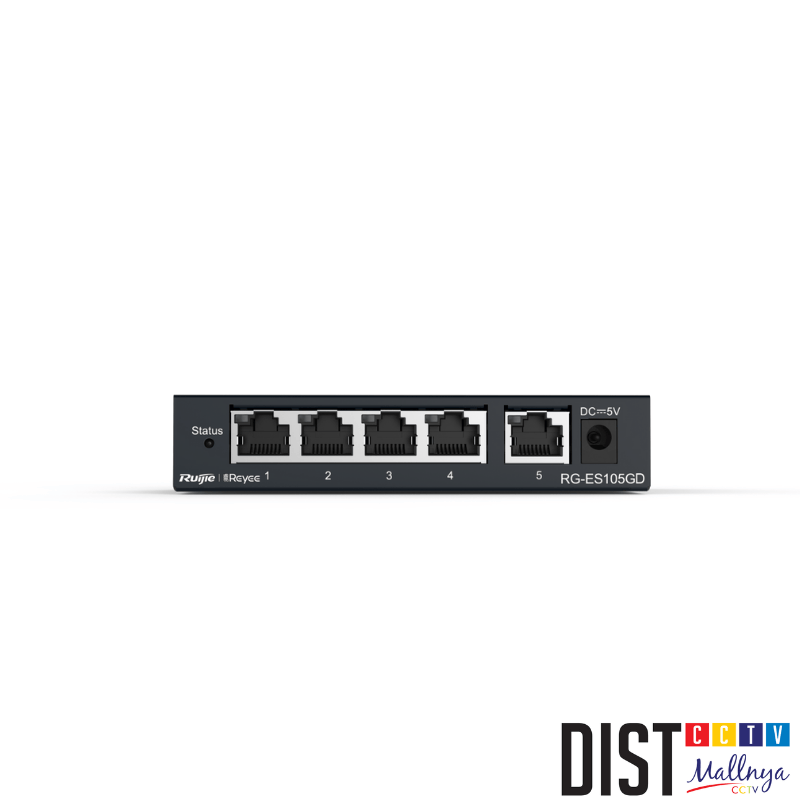

5-Port Gigabit unmanaged Switch, 5 Gigabit RJ45 Ports ,Steel Case
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
5-Port Gigabit unmanaged Switch, 5 Gigabit RJ45 Ports ,Steel Case
1-port PoE adapter (1000Base-T, PoE+/ 802.3at)
1000BASE-LX mini GBIC (1310nm), 10km, industrial design Operation tempreture -40 - 85℃, support DDM, Hot swap, 5 Years Warranty
24-Port 100Mbps + 1 Uplink Port 1000Mbps + 1 Gigabit RJ45/SFP combo Ports, 24 of the ports support PoE/PoE+ power supply. Max PoE power budget is 180W, Steel Case
AC1300 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP68
2.4 GHz: 3dBi @400Mbps, 5 GHz: 4dBi @867Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, DC 12V/1.5A , power consumption< 13.5W
TX power: 2.4GHz @26dBm, 5GHz @27dBm
Max. STAs: 110, recommended STAs: 96 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Router mode, Captive portal, Mesh, Master AP in Self-organizing
Network , Cloud/Eweb/APP management
A supporting Sector external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream 2x2 twospace stream technology, antenna gain is 16dBi, antenna horizontal angle is 120 °, vertical angle is 10°, it can be used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 5KM.
9-Port Gigabit Smart Cloud Mananged PoE Switch, 1 RJ45 uplink port, 3 Years Warranty
8 x 10/100/1000Mbps PoE+ ports, 1 RJ45 uplink, Max. budget 120Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
AC1300 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP65
2.4 GHz: 3dBi @400Mbps, 5 GHz: 4dBi @867Mbps, Max. 8 SSID
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE / 24V Passive PoE, power consumption< 13.5W
TX power: 2.4GHz @22dBm, 5GHz @21dBm
Max. STAs: 110, recommended STAs: 80 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
16-Port 1000Mbps + 2 Gigabit SFP Ports, 16 of the ports support PoE/PoE+ power supply. Max PoE power budget is 247W, Steel Case
2.4GHz 8dBi 500 meters Outdoor wireless bridge, up to 300Mbps throughput, IP55
H: 70°, V: 70°, PtP (2 Units per package)
2 x 10/100Mbps ports, Support 12V DC and 24V passive PoE
Support Auto pairing, Cloud/APP/Eweb management, PoE injector included.
AX1800 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP68
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, power consumption < 13.5 Watts
DC 12V/1.5A, power consumption < 18 Watts
TX power: 2.4GHz @25dBm, 5GHz @26dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
16-Port 100Mbps + 2 Gigabit RJ45/SFP combo Ports, 16 of the ports support PoE/PoE+ power supply. Max PoE power budget is 120W, Steel Case
AX3200 Dual band (2.4GHz&5GHz) access points, 4x4 MU-MIMO
2.4 GHz: 3dBi @800Mbps, 5 GHz: 3dBi @2402Mbps, Max. 8 SSID, 160MHz
1× 2.5/1 Gigabit Ports (PoE-In), 803at/802.3af PoE, DC 12V/1.5A, power consumption < 25.4 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 120 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
5GHz 15dBi 5KM Outdoor wireless bridge, up to 867Mbps throughput, IP55
H: 120°, V: 13°, PTMP (upto 16), 2 units per package
3 x 10/100/1000Mbps ports, Support 802.3af/at, 12V DC and 24V passive PoE, PoE injector included
Support mix mode with RG-EST310 V2, RG-EST350 V2, RG-EST330F-P, RG-EST350G, AirMetro
Support TDMA, SON, 2.4GHz mgmt SSID, Auto pairing, Cloud/APP/Eweb managemen
AX1800 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 15.5 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
48-Port Gigabit Layer 2+ Cloud Managed PoE+ Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
48 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
24-Port Gigabit Layer 2 Cloud Managed Switch, with 4 x SFP ports, 5 Years Warranty
24 x 10/100/1000Mbps ports, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
