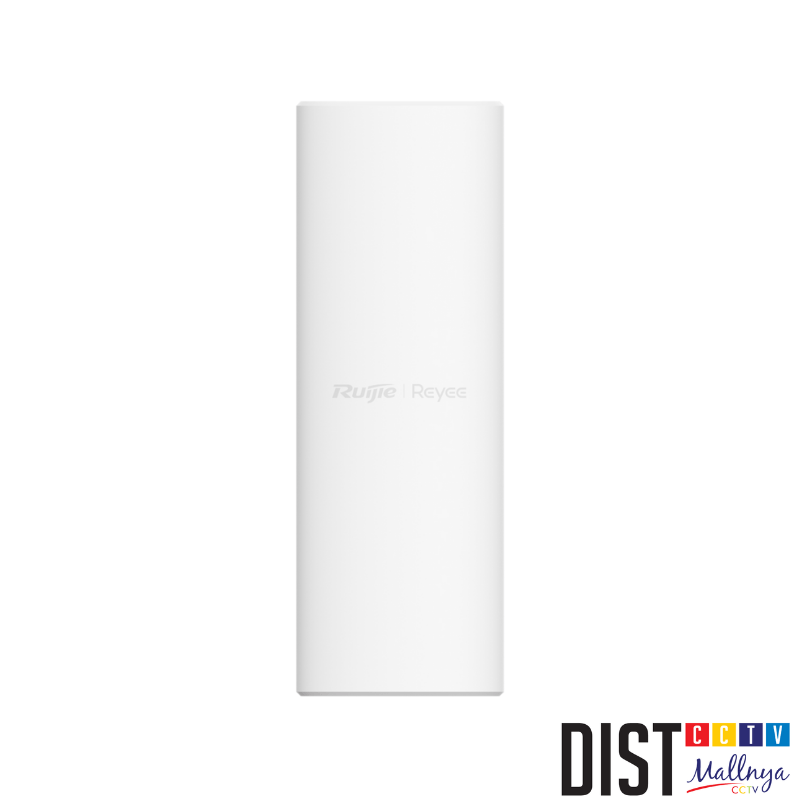

AX3000 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP65
2.4 GHz: 4dBi @573Mbps, 5 GHz: 6.5dBi @2402Mbps, Max. 8 SSID, 160MHz
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE / 24V/48V Passive PoE, power consumption < 16 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
AX3000 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP65
2.4 GHz: 4dBi @573Mbps, 5 GHz: 6.5dBi @2402Mbps, Max. 8 SSID, 160MHz
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE / 24V/48V Passive PoE, power consumption < 16 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
10-Port Gigabit Smart Cloud Mananged PoE Switch, 2 uplink with 1 SFP combo port, 3 Years Warranty
8 x 10/100/1000Mbps PoE+ ports, Max. budget 120Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
10GBASE-LR, SFP+ Transceiver (1310nm, 10km, LC
10GBASE SFP+ Optical Stack Cable (included both side transceivers), 1 Meter
AC1300 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP68
2.4 GHz: 3dBi @400Mbps, 5 GHz: 4dBi @867Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, DC 12V/1.5A , power consumption< 13.5W
TX power: 2.4GHz @26dBm, 5GHz @27dBm
Max. STAs: 110, recommended STAs: 96 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Router mode, Captive portal, Mesh, Master AP in Self-organizing
Network , Cloud/Eweb/APP management
24-Port Gigabit Layer 2+ Cloud Managed PoE+ Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
24 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
AX1800 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP68
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, power consumption < 13.5 Watts
DC 12V/1.5A, power consumption < 18 Watts
TX power: 2.4GHz @25dBm, 5GHz @26dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
8-Port Gigabit unmanaged Switch, 8 Gigabit RJ45 Ports ,Steel Case
AX1800 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 15.5 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
20-Port Gigabit Smart Cloud Mananged PoE Switch, 2 SFP and 2 RJ45 uplink, 3 Years Warranty
16 x 10/100/1000Mbps PoE+ ports, Max. budget 250Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
5GHz 15dBi 5KM Outdoor wireless bridge, up to 867Mbps throughput, IP55
H: 120°, V: 13°, PTMP (upto 16), 2 units per package
3 x 10/100/1000Mbps ports, Support 802.3af/at, 12V DC and 24V passive PoE, PoE injector included
Support mix mode with RG-EST310 V2, RG-EST350 V2, RG-EST330F-P, RG-EST350G, AirMetro
Support TDMA, SON, 2.4GHz mgmt SSID, Auto pairing, Cloud/APP/Eweb managemen
Code M, SD-WAN license apply for EG1510XS Series, 1 device, 1 year. RMA supported
HQ+Branches lower than 4, free license
Apply models:
EG1510XS
5-Port Gigabit Cloud Managed Router, Max. 2 x Gigabit WAN, 4 PoE ports, budget 54W
CPU 880MHz * 2, RAM 128MB, Flash 32MB, recommended 100 concurrent users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 8 PoE ports, budget 110W
CPU 880MHz * 2, RAM 256MB, Flash 32MB, recommended 200 concurrent users
Max. bandwidth 1000Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
24-Port Gigabit Layer 2 Cloud Managed Switch, with 4 x SFP ports, 5 Years Warranty
24 x 10/100/1000Mbps ports, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 84 PoE ports, budget 110W
CPU 1.35GHz * 2, RAM 512MB, Flash 256MB, recommended 300 concurrent users
Max. bandwidth 1500Mbps, SD-WAN throughput 300Mbps, at most 64 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
A supporting Omnidirectional external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream
2x2 two-space stream technology, antenna gain is 13dBi, antenna horizontal angle is 360 °, vertical angle is 7 °, it can be
used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 2KM.
