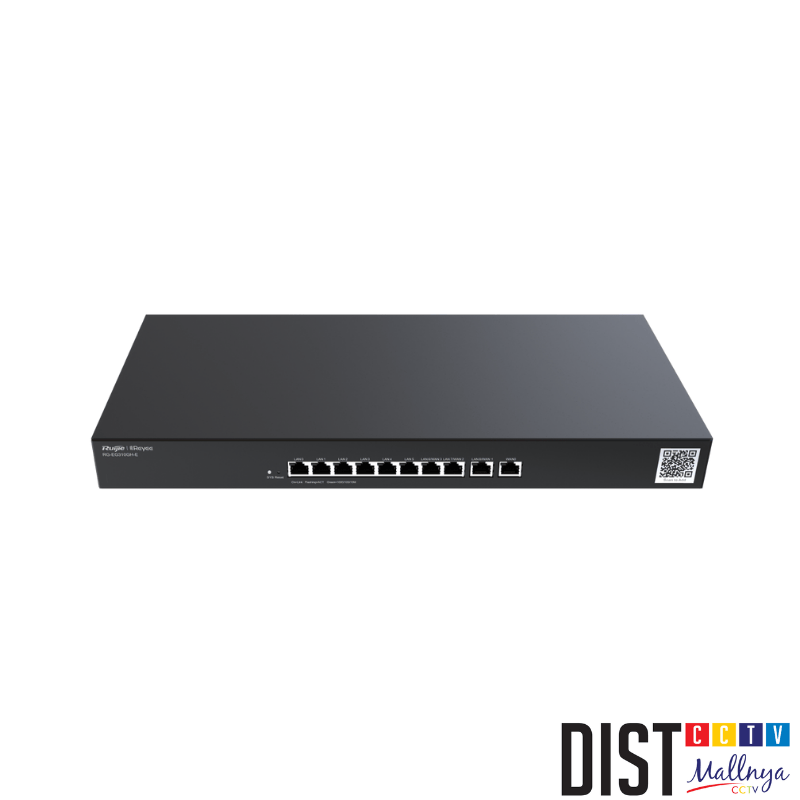

10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN
CPU 1.35GHz * 2, RAM 512MB, Flash 256MB, recommended 300 concurrent users
Max. bandwidth 1500Mbps, SD-WAN throughput 300Mbps, at most 64 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN
CPU 1.35GHz * 2, RAM 512MB, Flash 256MB, recommended 300 concurrent users
Max. bandwidth 1500Mbps, SD-WAN throughput 300Mbps, at most 64 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
1-port PoE adapter (25000Base-T, 50V, 60W), applies to RG-RAP2260(H), RG-RAP73HD, RG-RAP6260(H)
AC1300 Wave 2 Dual band (2.4GHz&5GHz) indoor access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
2× 10/100Mbps LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 13 Watts
TX power: 2.4GHz @20dBm, 5GHz @20dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA2, Router mode, Mesh, Captive portal, Master AP in Selforganizing Network , Cloud/Eweb/APP management
6-Port 2.5Gig Smart Cloud Mananged PoE Switch, 1 * SFP+ and 1 * 2.5G uplink, 3 Years Warranty
4 x 10/100/1000/2500Mbps PoE+ ports, Max. budget 70Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
Product Accessories, each pack contains 10 cover, suitable for RG-RAP1260, gold
16-Port Gigabit Smart Cloud Mananged Switch, 3 Years Warranty
16 x 10/100/1000Mbps ports, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
5GHz 15dBi 5KM Outdoor wireless bridge, up to 867Mbps throughput, IP54
H: 31°, V: 14°, PtMP(Upto 3), 2 units per package
2 x 10/100/1000Mbps ports, Support 12V DC and 24V passive PoE, PoE injector included
Support Auto pairing, Cloud/APP/Eweb management
AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100Mbps WAN Ports (PoE-In), 1× 10/100Mbps LAN Ports
803af PoE, power consumption < 8 Watts
TX power: 2.4GHz @19dBm, 5GHz @18dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network ,
Cloud/Eweb/APP management
Product Accessories, each pack contains 10 cover, suitable for RG-RAP1260, black
 Gigabit BIDI Transceiver - TX1310/RX1550, 20km, LC, industrial design Operation tempreture -40 - 85℃, support DDM, Hot swap, 5 Years Warranty
AX1800 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @573Mbps, 5 GHz: 5dBi @1201Mbps, Max. 8 SSID
1× Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 12.95 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 256, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
AC/DC 240W DIN-Rail Power Supply for industrial switch, support both NIS2 and NIS3 series
AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100/1000Mbps WAN Ports (PoE-In), 1× 10/100/1000Mbps LAN Ports
803af PoE, power consumption < 9 Watts
TX power: 2.4GHz @20dBm, 5GHz @20dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network ,
Cloud/Eweb/APP management
5-Port 10/100 Mbps Desktop Plastic Switch
10-Port 100Mbps, 8 of the ports support PoE/PoE+ power supply. Max PoE power budget is 110W, Steel Case
8-Port 100Mbps + 2 Uplink Port 1000Mbps, 8 of the ports support PoE/PoE+ power supply. Max PoE power budget is 110W, Steel Case
24-Port Gigabit Layer 2 Cloud Managed Switch, with 4 x SFP ports, 5 Years Warranty
24 x 10/100/1000Mbps ports, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
