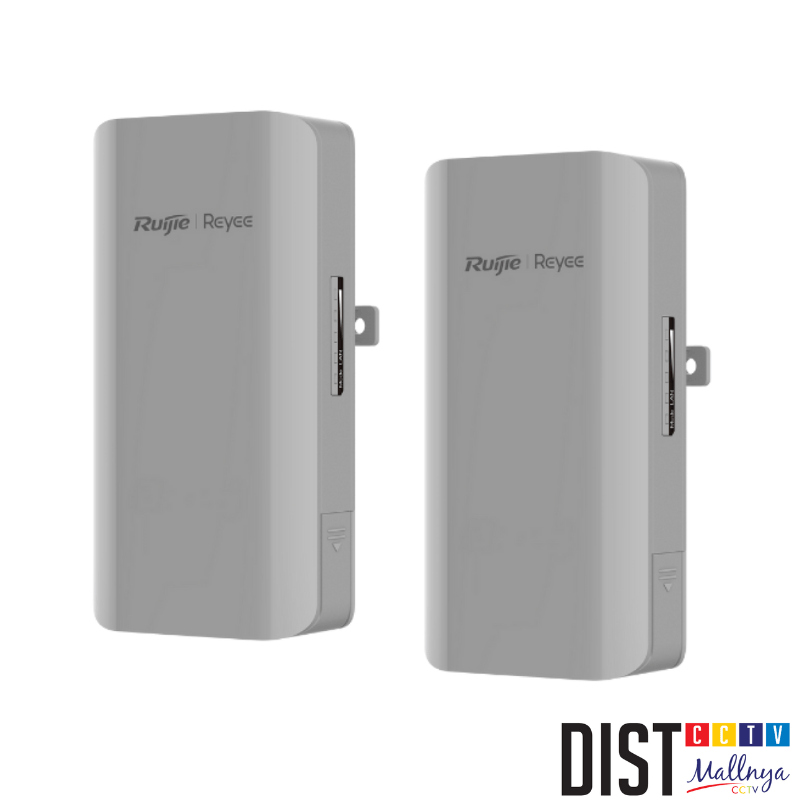

2.4GHz 8dBi 500 meters Outdoor wireless bridge, up to 300Mbps throughput, IP55
H: 70°, V: 70°, PtP (2 Units per package)
2 x 10/100Mbps ports, Support 12V DC and 24V passive PoE
Support Auto pairing, Cloud/APP/Eweb management, PoE injector included.
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
2.4GHz 8dBi 500 meters Outdoor wireless bridge, up to 300Mbps throughput, IP55
H: 70°, V: 70°, PtP (2 Units per package)
2 x 10/100Mbps ports, Support 12V DC and 24V passive PoE
Support Auto pairing, Cloud/APP/Eweb management, PoE injector included.
24-Port 100Mbps + 1 Uplink Port 1000Mbps + 1 Gigabit RJ45/SFP combo Ports, 24 of the ports support PoE/PoE+ power supply. Max PoE power budget is 180W, Steel Case
10-Port Gigabit Layer 2 Cloud Managed PoE+ Switch, with 2 x SFP ports, 5 Years Warranty
8 x 10/100/1000Mbps PoE+ ports, Max. budget 125 Watts, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
1-port PoE adapter (1000Base-T, PoE+/ 802.3at)
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 84 PoE ports, budget 110W
CPU 1.35GHz * 2, RAM 512MB, Flash 256MB, recommended 300 concurrent users
Max. bandwidth 1500Mbps, SD-WAN throughput 300Mbps, at most 64 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
AX1800 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @573Mbps, 5 GHz: 5dBi @1201Mbps, Max. 8 SSID
1× Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 12.95 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 256, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 4 PoE ports, budget 60W
CPU 1.35GHz * 2, RAM 512MB, Flash 256MB, recommended 300 concurrent users
Max. bandwidth 1500Mbps, SD-WAN throughput 300Mbps, at most 64 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
AX1800 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 15.5 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
Wireless bridge CPE, 5GHz 867Mbps, supports 11ac protocol, IP65, gain up to 23dBi, 1*10/100M port, the base station can be paired with up to 32 CPE
5GHz 13dBi 3KM Outdoor wireless bridge, up to 867Mbps throughput, IP55
H: 30°, V: 30°, PTMP (upto 5), 1 unit per package
3 x 10/100Mbps ports (2 x PoE-Out), Support 802.3af/at, 12V DC and 24V passive PoE, PoE injector included
Support mix mode with RG-EST310 V2, RG-EST350 V2, RG-EST350G, RG-EST450G, AirMetro
Support TDMA, SON, Cloud/APP/Eweb management, one click pairing
10-Port Gigabit Smart Cloud Mananged PoE Switch, 2 uplink with 1 SFP combo port, 3 Years Warranty
8 x 10/100/1000Mbps PoE+ ports, Max. budget 120Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100/1000Mbps WAN Ports (PoE-In), 1× 10/100/1000Mbps LAN Ports
803af PoE, power consumption < 9 Watts
TX power: 2.4GHz @20dBm, 5GHz @20dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network ,
Cloud/Eweb/APP management
AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100Mbps WAN Ports (PoE-In), 1× 10/100Mbps LAN Ports
803af PoE, power consumption < 8 Watts
TX power: 2.4GHz @19dBm, 5GHz @18dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network ,
Cloud/Eweb/APP management
24-Port Gigabit Layer 2 Cloud Managed Switch, with 4 x SFP ports, 5 Years Warranty
24 x 10/100/1000Mbps ports, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
10GBASE SFP+ Optical Stack Cable (included both side transceivers), 3 Meter
Code M, SD-WAN license apply for EG1510XS Series, 1 device, 1 year. RMA supported
HQ+Branches lower than 4, free license
Apply models:
EG1510XS
AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100/1000Mbps WAN Ports (PoE-In), 4 × 10/100/1000Mbps LAN Ports (1 PoE-Out)
803af PoE, power consumption < 8 Watts
TX power: 2.4GHz @19dBm, 5GHz @18dBm
Max. STAs: 110, recommended STAs: 80 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network ,
Cloud/Eweb/APP management
