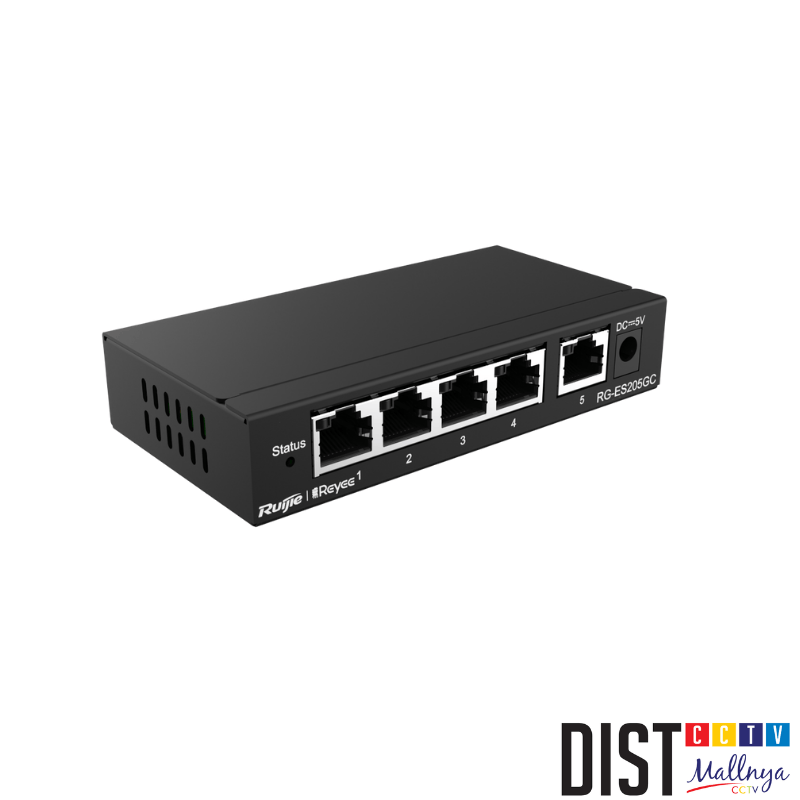

5-Port Gigabit Smart Cloud Mananged Switch, 1 RJ45 uplink port, 3 Years Warranty
4 x 10/100/1000Mbps ports, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
5-Port Gigabit Smart Cloud Mananged Switch, 1 RJ45 uplink port, 3 Years Warranty
4 x 10/100/1000Mbps ports, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
AC/DC 120W DIN-Rail Power Supply for industrial switch, support both NIS2 and NIS3 series
AX3000 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP65
2.4 GHz: 4dBi @573Mbps, 5 GHz: 6.5dBi @2402Mbps, Max. 8 SSID, 160MHz
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE / 24V/48V Passive PoE, power consumption < 16 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
Product Accessories, each pack contains 10 cover, suitable for RG-RAP1260, black
1000BASE-LX mini GBIC (1310nm), 10km, industrial design Operation tempreture -40 - 85℃, support DDM, Hot swap, 5 Years Warranty
5-Port Gigabit Cloud Managed Router, Max. 2 x Gigabit WAN
CPU 880MHz * 2, RAM 128MB, Flash 32MB, recommended 100 concurrent users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
AC1300 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP68
2.4 GHz: 3dBi @400Mbps, 5 GHz: 4dBi @867Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, DC 12V/1.5A , power consumption< 13.5W
TX power: 2.4GHz @26dBm, 5GHz @27dBm
Max. STAs: 110, recommended STAs: 96 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Router mode, Captive portal, Mesh, Master AP in Self-organizing
Network , Cloud/Eweb/APP management
24-Port Gigabit Layer 2 Cloud Managed Switch, with 4 x SFP ports, 5 Years Warranty
24 x 10/100/1000Mbps ports, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
5GHz 15dBi 5KM Outdoor wireless bridge, up to 867Mbps throughput, IP55
H: 120°, V: 13°, PTMP (upto 16), 2 units per package
3 x 10/100/1000Mbps ports, Support 802.3af/at, 12V DC and 24V passive PoE, PoE injector included
Support mix mode with RG-EST310 V2, RG-EST350 V2, RG-EST330F-P, RG-EST350G, AirMetro
Support TDMA, SON, 2.4GHz mgmt SSID, Auto pairing, Cloud/APP/Eweb managemen
1-port PoE adapter (1000Base-T, 52V, 31.2W), applies to RG-RAP2266, RG-RAP2260(E), RG-RAP72Pro, RG-RAP73Pro, RGRAP62-OD, RG-RAP6262(G), RG-RAP6262
24-Port Gigabit Layer 2+ Cloud Managed PoE+ Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
24 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100/1000Mbps WAN Ports (PoE-In), 4 × 10/100/1000Mbps LAN Ports (1 PoE-Out)
803af PoE, power consumption < 8 Watts
TX power: 2.4GHz @19dBm, 5GHz @18dBm
Max. STAs: 110, recommended STAs: 80 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network ,
Cloud/Eweb/APP management
28-Port Gigabit Smart Cloud Mananged PoE Switch, 2 SFP and 2 RJ45 uplink, 3 Years Warranty
24 x 10/100/1000Mbps PoE+ ports, Max. budget 250Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
2.4GHz 8dBi 500 meters Outdoor wireless bridge, up to 300Mbps throughput, IP55
H: 70°, V: 70°, PtP (2 Units per package)
2 x 10/100Mbps ports, Support 12V DC and 24V passive PoE
Support Auto pairing, Cloud/APP/Eweb management, PoE injector included.
AC1300 Wave 2 Dual band (2.4GHz&5GHz) indoor access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
2× 10/100/1000Mbps LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 13 Watts
TX power: 2.4GHz @20dBm, 5GHz @20dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA2, Router mode, Mesh, Captive portal, Master AP in Selforganizing Network , Cloud/Eweb/APP managementÂ
48-Port Gigabit Layer 2+ Cloud Managed PoE+ Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
48 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100/1000Mbps WAN Ports (PoE-In), 1× 10/100/1000Mbps LAN Ports
803af PoE, power consumption < 9 Watts
TX power: 2.4GHz @20dBm, 5GHz @20dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network ,
Cloud/Eweb/APP management
