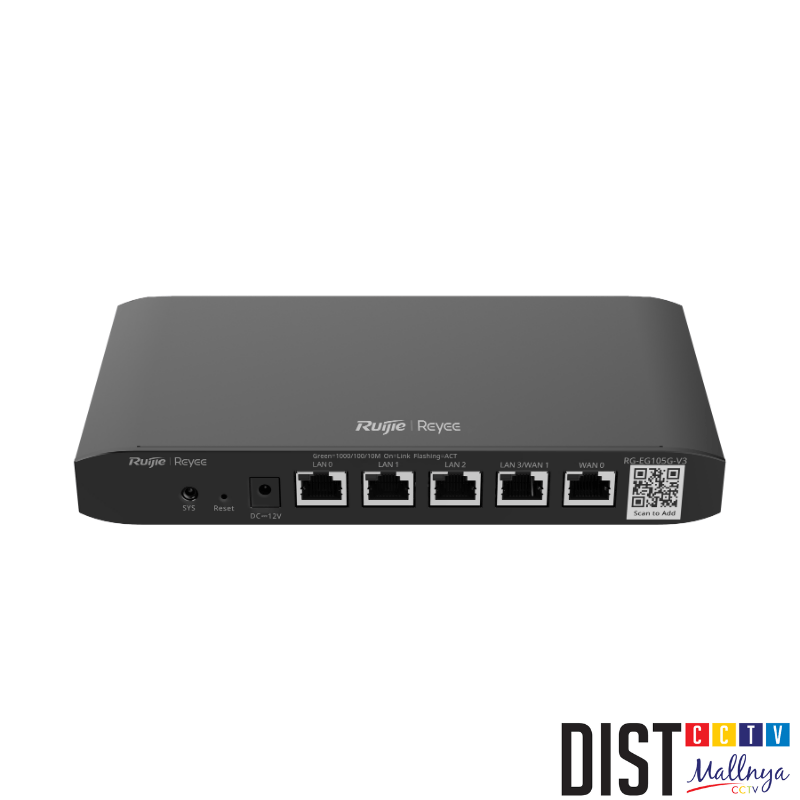

5-Port Gigabit Cloud Managed Router, Max. 2 x Gigabit WAN
CPU 880MHz * 2, RAM 128MB, Flash 32MB, recommended 100 concurrent users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
5-Port Gigabit Cloud Managed Router, Max. 2 x Gigabit WAN
CPU 880MHz * 2, RAM 128MB, Flash 32MB, recommended 100 concurrent users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
10GBASE SFP+ Optical Stack Cable (included both side transceivers), 5 Meter
AX3200 Dual band (2.4GHz&5GHz) access points, 4x4 MU-MIMO
2.4 GHz: 3dBi @800Mbps, 5 GHz: 3dBi @2402Mbps, Max. 8 SSID, 160MHz
1× 2.5/1 Gigabit Ports (PoE-In), 803at/802.3af PoE, DC 12V/1.5A, power consumption < 25.4 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 120 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
5-Port Gigabit Cloud Managed Router, Max. 2 x Gigabit WAN, 4 PoE ports, budget 54W
CPU 880MHz * 2, RAM 128MB, Flash 32MB, recommended 100 concurrent users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
AX3000 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3.5dBi @574Mbps, 5 GHz: 5dBi @2402Mbps, Max. 8 SSID, 160MHz
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE, DC 12V/2A, power consumption < 18 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 110 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, SNMP, Router mode, Standalone Captive portal, Mesh, Master AP
in Self-organizing Network , Cloud/Eweb/APP management
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN
CPU 1.35GHz * 2, RAM 512MB, Flash 256MB, recommended 300 concurrent users
Max. bandwidth 1500Mbps, SD-WAN throughput 300Mbps, at most 64 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
Wireless bridge CPE, 5GHz 867Mbps, supports 11ac protocol, IP65, gain up to 23dBi, 1*10/100M port, the base station can be paired with up to 32 CPE
Gigabit BIDI Transceiver - TX1550/RX1310, 20km, LC, industrial design Operation tempreture -40 - 85℃, support DDM, Hot swap, 5 Years Warranty
48-Port Gigabit Layer 2 Cloud Managed PoE+ Switch, with 4 x SFP ports, 5 Years Warranty
48 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
6-Port 100Mbps, 4 of the ports support PoE/PoE+ power supply. Max PoE power budget is 54W, Steel Case
AX1800 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP68
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, power consumption < 13.5 Watts
DC 12V/1.5A, power consumption < 18 Watts
TX power: 2.4GHz @25dBm, 5GHz @26dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
AC/DC 120W DIN-Rail Power Supply for industrial switch, support both NIS2 and NIS3 series
10GBASE-SR, SFP+ Transceiver, MM (850nm, 300m, LC
10-Port Gigabit Cloud Managed Layer 2 Industrial Switch, with 2 x SFP ports, IP40, 5 Years Warranty
8 x 10/100/1000Mbps ports, 7 PoE/PoE+ (30W) ports and 1 PoE++ port (60W), Max. budget 300W
Max. 16 VLANs, Dual DC power supply support, operation tempreture: -40℃ - 75℃, DIN-Rail installation
Support ERPS, Ports isolation, Camera detection, PoE Watchdog, SON, Cloud/Eweb/App management
1-port PoE adapter (1000Base-T, 52V, 31.2W), applies to RG-RAP2266, RG-RAP2260(E), RG-RAP72Pro, RG-RAP73Pro, RGRAP62-OD, RG-RAP6262(G), RG-RAP6262
8-Port Gigabit Smart Cloud Mananged Switch, 3 Years Warranty
8 x 10/100/1000Mbps ports, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
10-Port Gigabit Cloud Managed Router, Max. 9 WAN, 4 * 10/100/1000Mbps ports, 4 * 10/100/1000/2500 Mbps ports, 2
* 10G SFP+ ports
Max. bandwidth 3000Mbps, SD-WAN throughput 1100Mbps, at most 300 branches
CPU 1.8GHz * 4 core processors, RAM 2GB, Flash 256MB, recommended 700 concurrent users, Max. 150,000 concurrent
sessions.
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open/WireGuard VPN, Inter-VLAN routing,
DHCP server, PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF, BGP
