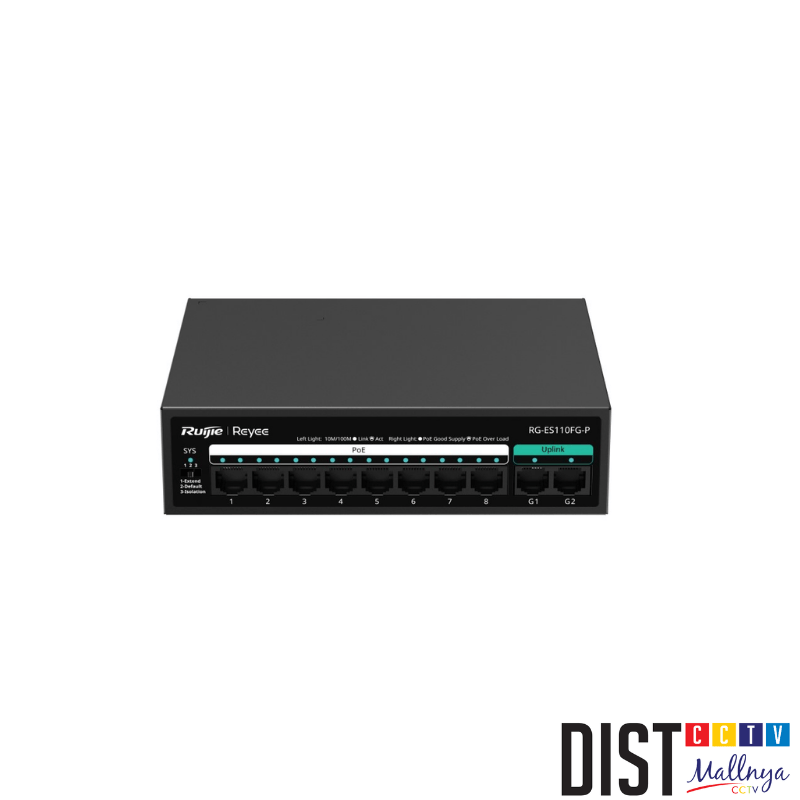

8-Port 100Mbps + 2 Uplink Port 1000Mbps, 8 of the ports support PoE/PoE+ power supply. Max PoE power budget is 110W, Steel Case
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
8-Port 100Mbps + 2 Uplink Port 1000Mbps, 8 of the ports support PoE/PoE+ power supply. Max PoE power budget is 110W, Steel Case
10GBASE SFP+ Optical Stack Cable (included both side transceivers), 1 Meter
A supporting Sector external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream 2x2 twospace stream technology, antenna gain is 20dBi, antenna horizontal angle is 90 °, vertical angle is 7°, it can be used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 10KM.Â
Wireless bridge CPE, 5GHz 867Mbps, supports 11ac protocol, IP65, gain up to 23dBi, 1*10/100M port, the base station can be paired with up to 32 CPE
2.4GHz 8dBi 500 meters Outdoor wireless bridge, up to 300Mbps throughput, IP55
H: 70°, V: 70°, PtP (2 Units per package)
2 x 10/100Mbps ports, Support 12V DC and 24V passive PoE
Support Auto pairing, Cloud/APP/Eweb management, PoE injector included.
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 8 PoE ports, budget 110W
CPU 880MHz * 2, RAM 256MB, Flash 32MB, recommended 200 concurrent users
Max. bandwidth 1000Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
24-Port 100Mbps + 1 Uplink Port 1000Mbps + 1 Gigabit RJ45/SFP combo Ports, 24 of the ports support PoE/PoE+ power supply. Max PoE power budget is 370W, Steel Case
Product Accessories, each pack contains 10 cover, suitable for RG-RAP1260, gray
5-Port Gigabit Cloud Managed Router, Max. 2 x Gigabit WAN
CPU 880MHz * 2, RAM 128MB, Flash 32MB, recommended 100 concurrent users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
Menyambungkan jaringan internet atau CCTV antar dua bangunan yang terpisah jarak jauh — misalnya kantor pusat dengan gudang di seberang jalan, atau rumah dengan pos jaga di ujung lahan — biasanya butuh galian kabel yang mahal dan merepotkan, apalagi kalau harus melintasi jalan umum. Ruijie RG-EST350 V2 mengatasi ini lewat teknologi wireless bridge: dua unit yang saling berhadapan bisa menghubungkan jaringan hingga jarak 5KM tanpa kabel fisik sama sekali. Dengan throughput hingga 867Mbps, koneksi yang dihasilkan cukup cepat untuk kebutuhan transmisi CCTV multi-kamera maupun jaringan internet kantor, menjadikannya solusi praktis untuk lokasi yang sulit atau mahal dijangkau kabel.
Â
Spesifikasi :
Â
1. 5GHz 15dBi, 5KM Outdoor Wireless Bridge
Frekuensi dan gain antena ini dioptimalkan untuk jarak jangkau jauh di luar ruangan, memungkinkan koneksi stabil antar dua titik yang terpisah hingga 5 kilometer tanpa kabel.
2. Throughput hingga 867Mbps
Kecepatan transmisi data ini cukup tinggi untuk mendukung beberapa kamera CCTV beresolusi tinggi sekaligus, atau kebutuhan jaringan internet kantor dengan banyak pengguna.
3. IP54
Tingkat ketahanan ini melindungi perangkat dari debu dan cipratan air, sesuai untuk pemasangan outdoor permanen di tiang atau dinding luar bangunan.
4. H: 31°, V: 14°, PtMP (Upto 3)
Sudut cakupan sinyal horizontal dan vertikal ini menentukan area jangkauan bridge, sementara dukungan PtMP (Point-to-Multipoint) hingga 3 unit memungkinkan satu titik pusat terhubung ke beberapa lokasi sekaligus, bukan hanya satu arah.
5. 2 Units per Package
Paket penjualan sudah termasuk sepasang unit yang saling berhadapan, sehingga langsung siap dipasang di kedua titik lokasi tanpa perlu membeli tambahan secara terpisah.
6. 2x Port 10/100/1000Mbps
Dua port ethernet ini memungkinkan perangkat disambungkan ke lebih dari satu sumber jaringan atau perangkat lain di masing-masing titik lokasi.
7. Support 12V DC dan 24V Passive PoE, PoE Injector Included
Perangkat ini fleksibel menyesuaikan sumber daya yang tersedia, dan sudah dilengkapi PoE injector dalam paket sehingga tidak perlu membeli aksesori daya tambahan secara terpisah. Â
8. Support Auto Pairing, Cloud/APP/Eweb Management
Kedua unit bisa saling terhubung secara otomatis tanpa konfigurasi manual yang rumit, dan pengelolaannya bisa dilakukan lewat cloud, aplikasi, atau web browser sesuai preferensi pengguna.
8-Port 10/100 Mbps Desktop Plastic Switch
A supporting Omnidirectional external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream
2x2 two-space stream technology, antenna gain is 13dBi, antenna horizontal angle is 360 °, vertical angle is 7 °, it can be
used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 2KM.
AC1200 Wave 2 Dual band (2.4GHz&5GHz) indoor access points, 2x2 MU-MIMO
2.4 GHz: 4dBi @300Mbps, 5 GHz: 6dBi @867Mbps, Max. 32 SSID
1× 10/100/1000Mbps LAN Ports (PoE-In), 1 console port, 803af/at PoE, DC 12V/1.5A, power consumption < 13 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 256, recommended STAs: 64 STAs
Support Beamforming, Layer2/3 roaming, Radius, WPA2, SNMP, Router mode, Mesh, Captive portal, Master AP in Selforganizing Network , Cloud/Eweb/APP management
BE3600 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @688Mbps, 5 GHz: 5dBi @2882Mbps, Max. 8 SSID
1× 2.5G/Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 14 Watts
TX power: 2.4GHz @27dBm, 5GHz @25dBm
Max. STAs: 256, recommended STAs: 100 STAs
Support MLO, MRU, Preamble Puncturing, 4K QAM, Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x,
SNMP, Router mode, Standalone Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
6-Port 2.5Gig Smart Cloud Mananged PoE Switch, 1 * SFP+ and 1 * 2.5G uplink, 3 Years Warranty
4 x 10/100/1000/2500Mbps PoE+ ports, Max. budget 70Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
10-Port Gigabit Layer 2 Cloud Managed PoE+ Switch, with 2 x SFP ports, 5 Years Warranty
8 x 10/100/1000Mbps PoE+ ports, Max. budget 125 Watts, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
9-Port Gigabit Smart Cloud Mananged PoE Switch, 1 RJ45 uplink port, 3 Years Warranty
8 x 10/100/1000Mbps PoE+ ports, 1 RJ45 uplink, Max. budget 120Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
