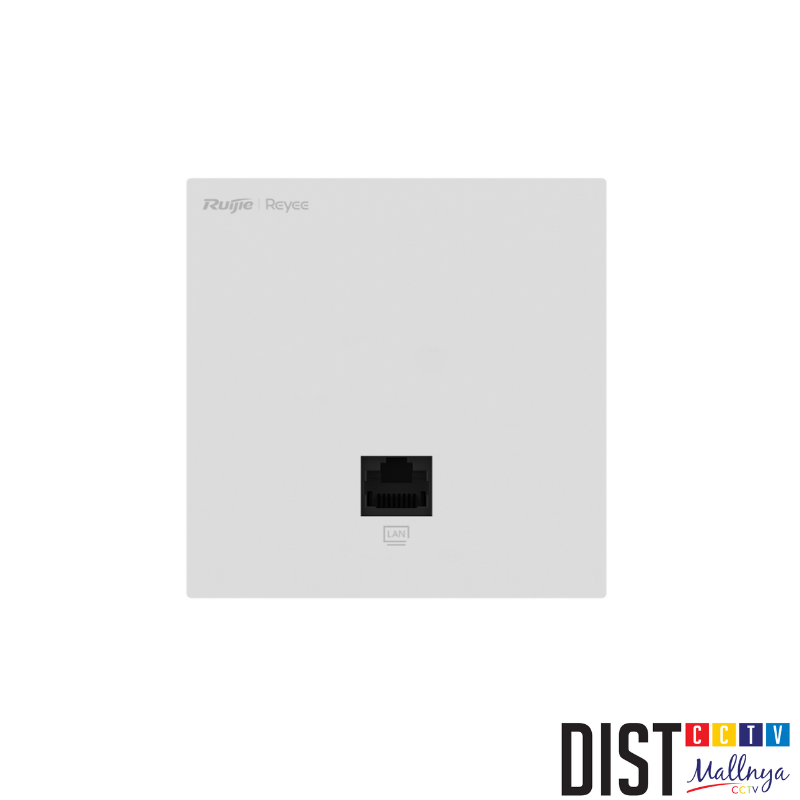

AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100/1000Mbps WAN Ports (PoE-In), 1× 10/100/1000Mbps LAN Ports
803af PoE, power consumption < 9 Watts
TX power: 2.4GHz @20dBm, 5GHz @20dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network ,
Cloud/Eweb/APP management
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100/1000Mbps WAN Ports (PoE-In), 1× 10/100/1000Mbps LAN Ports
803af PoE, power consumption < 9 Watts
TX power: 2.4GHz @20dBm, 5GHz @20dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network ,
Cloud/Eweb/APP management
24-Port 100Mbps + 1 Uplink Port 1000Mbps + 1 Gigabit RJ45/SFP combo Ports, 24 of the ports support PoE/PoE+ power supply. Max PoE power budget is 370W, Steel Case
16-Port Gigabit Smart Cloud Mananged Switch, 3 Years Warranty
16 x 10/100/1000Mbps ports, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
AC1300 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP68
2.4 GHz: 3dBi @400Mbps, 5 GHz: 4dBi @867Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, DC 12V/1.5A , power consumption< 13.5W
TX power: 2.4GHz @26dBm, 5GHz @27dBm
Max. STAs: 110, recommended STAs: 96 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Router mode, Captive portal, Mesh, Master AP in Self-organizing
Network , Cloud/Eweb/APP management
AX3000 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3.5dBi @574Mbps, 5 GHz: 5dBi @2402Mbps, Max. 8 SSID, 160MHz
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE, DC 12V/2A, power consumption < 18 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 110 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, SNMP, Router mode, Standalone Captive portal, Mesh, Master AP
in Self-organizing Network , Cloud/Eweb/APP management
10GBASE SFP+ Optical Stack Cable (included both side transceivers), 5 Meter
5-Port 10/100 Mbps Desktop Plastic Switch
6-Port 100Mbps, 4 of the ports support PoE/PoE+ power supply. Max PoE power budget is 54W, Steel Case
24-Port Gigabit Layer 2 Cloud Managed PoE+ Switch, with 4 x SFP ports, 5 Years Warranty
24 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
10-Port Gigabit Layer 2 Cloud Managed PoE+ Switch, with 2 x SFP ports, 5 Years Warranty
8 x 10/100/1000Mbps PoE+ ports, Max. budget 125 Watts, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
Passive PoE adapter for Wireless Bridge, without power cord, 1*10/100M, 24V/0.5A, 12W, Compatible for RG-EST310 V2，RG-AirMetro460F.
A supporting Sector external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream 2x2 twospace stream technology, antenna gain is 20dBi, antenna horizontal angle is 90 °, vertical angle is 7°, it can be used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 10KM.
Menyambungkan jaringan internet atau CCTV antar dua bangunan yang terpisah jarak jauh — misalnya kantor pusat dengan gudang di seberang jalan, atau rumah dengan pos jaga di ujung lahan — biasanya butuh galian kabel yang mahal dan merepotkan, apalagi kalau harus melintasi jalan umum. Ruijie RG-EST350 V2 mengatasi ini lewat teknologi wireless bridge: dua unit yang saling berhadapan bisa menghubungkan jaringan hingga jarak 5KM tanpa kabel fisik sama sekali. Dengan throughput hingga 867Mbps, koneksi yang dihasilkan cukup cepat untuk kebutuhan transmisi CCTV multi-kamera maupun jaringan internet kantor, menjadikannya solusi praktis untuk lokasi yang sulit atau mahal dijangkau kabel.
Spesifikasi :
1. 5GHz 15dBi, 5KM Outdoor Wireless Bridge
Frekuensi dan gain antena ini dioptimalkan untuk jarak jangkau jauh di luar ruangan, memungkinkan koneksi stabil antar dua titik yang terpisah hingga 5 kilometer tanpa kabel.
2. Throughput hingga 867Mbps
Kecepatan transmisi data ini cukup tinggi untuk mendukung beberapa kamera CCTV beresolusi tinggi sekaligus, atau kebutuhan jaringan internet kantor dengan banyak pengguna.
3. IP54
Tingkat ketahanan ini melindungi perangkat dari debu dan cipratan air, sesuai untuk pemasangan outdoor permanen di tiang atau dinding luar bangunan.
4. H: 31°, V: 14°, PtMP (Upto 3)
Sudut cakupan sinyal horizontal dan vertikal ini menentukan area jangkauan bridge, sementara dukungan PtMP (Point-to-Multipoint) hingga 3 unit memungkinkan satu titik pusat terhubung ke beberapa lokasi sekaligus, bukan hanya satu arah.
5. 2 Units per Package
Paket penjualan sudah termasuk sepasang unit yang saling berhadapan, sehingga langsung siap dipasang di kedua titik lokasi tanpa perlu membeli tambahan secara terpisah.
6. 2x Port 10/100/1000Mbps
Dua port ethernet ini memungkinkan perangkat disambungkan ke lebih dari satu sumber jaringan atau perangkat lain di masing-masing titik lokasi.
7. Support 12V DC dan 24V Passive PoE, PoE Injector Included
Perangkat ini fleksibel menyesuaikan sumber daya yang tersedia, dan sudah dilengkapi PoE injector dalam paket sehingga tidak perlu membeli aksesori daya tambahan secara terpisah.
8. Support Auto Pairing, Cloud/APP/Eweb Management
Kedua unit bisa saling terhubung secara otomatis tanpa konfigurasi manual yang rumit, dan pengelolaannya bisa dilakukan lewat cloud, aplikasi, atau web browser sesuai preferensi pengguna.
AX1800 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP68
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, power consumption < 13.5 Watts
DC 12V/1.5A, power consumption < 18 Watts
TX power: 2.4GHz @25dBm, 5GHz @26dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
16-Port 1000Mbps + 2 Gigabit SFP Ports, 16 of the ports support PoE/PoE+ power supply. Max PoE power budget is 247W, Steel Case
AX3000 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP65
2.4 GHz: 4dBi @573Mbps, 5 GHz: 6.5dBi @2402Mbps, Max. 8 SSID, 160MHz
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE / 24V/48V Passive PoE, power consumption < 16 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 84 PoE ports, budget 110W
CPU 1.35GHz * 2, RAM 512MB, Flash 256MB, recommended 300 concurrent users
Max. bandwidth 1500Mbps, SD-WAN throughput 300Mbps, at most 64 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
