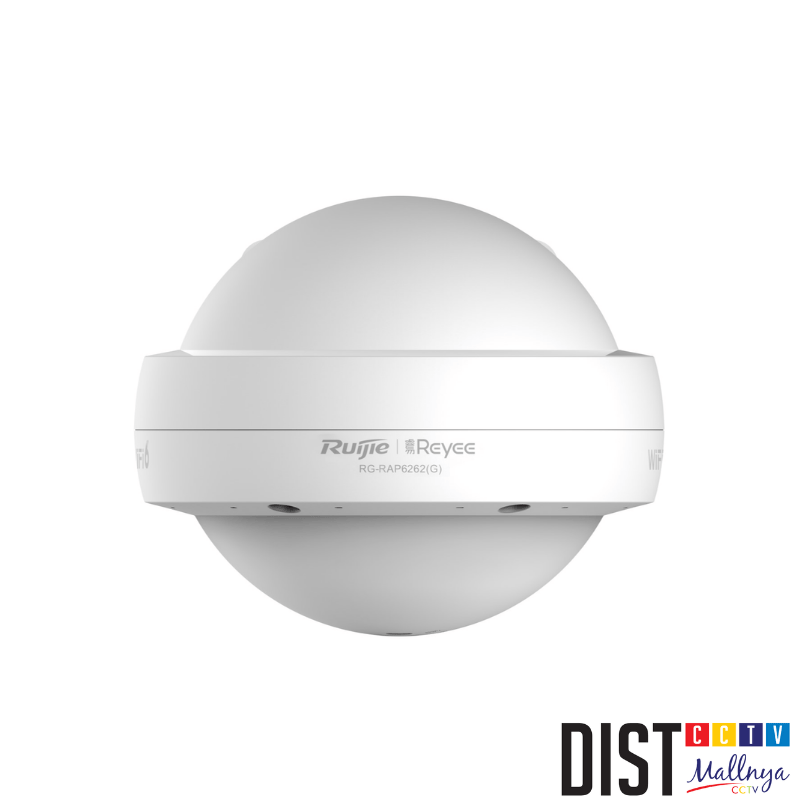

AX1800 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP68
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, power consumption < 13.5 Watts
DC 12V/1.5A, power consumption < 18 Watts
TX power: 2.4GHz @25dBm, 5GHz @26dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
AX1800 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP68
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, power consumption < 13.5 Watts
DC 12V/1.5A, power consumption < 18 Watts
TX power: 2.4GHz @25dBm, 5GHz @26dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
Gigabit BIDI Transceiver - TX1550/RX1310, 20km, LC, industrial design Operation tempreture -40 - 85℃, support DDM, Hot swap, 5 Years Warranty
24-Port 100Mbps + 1 Uplink Port 1000Mbps + 1 Gigabit RJ45/SFP combo Ports, 24 of the ports support PoE/PoE+ power supply. Max PoE power budget is 370W, Steel Case
10GBASE SFP+ Optical Stack Cable (included both side transceivers), 5 Meter
6-Port Gigabit Smart Cloud Mananged PoE Switch, 2 uplink with 1 SFP combo port, 3 Years Warranty
4 x 10/100/1000Mbps PoE+ ports, Max. budget 54Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
1-port PoE adapter (25000Base-T, 50V, 60W), applies to RG-RAP2260(H), RG-RAP73HD, RG-RAP6260(H)
A supporting Sector external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream 2x2 twospace stream technology, antenna gain is 16dBi, antenna horizontal angle is 120 °, vertical angle is 10°, it can be used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 5KM.
Product Accessories, each pack contains 10 cover, suitable for RG-RAP1260, black
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 8 PoE ports, budget 110W
CPU 880MHz * 2, RAM 256MB, Flash 32MB, recommended 200 concurrent users
Max. bandwidth 1000Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
Passive PoE adapter for Wireless Bridge, without power cord, 1*10/100/1000M, 24V/0.5A, 12W, Compatible for RG-EST350 V2, RG-AirMetro460G, RG-AirMetro550G-B.
6-Port 100Mbps, 4 of the ports support PoE/PoE+ power supply. Max PoE power budget is 54W, Steel Case
AX1800 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @573Mbps, 5 GHz: 5dBi @1201Mbps, Max. 8 SSID
1× Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 12.95 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 256, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
Product Accessories, each pack contains 10 cover, suitable for RG-RAP1260, gold
24-Port Gigabit Layer 2+ Cloud Managed Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
24 x 10/100/1000Mbps ports, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
48-Port Gigabit Layer 2 Cloud Managed PoE+ Switch, with 4 x SFP ports, 5 Years Warranty
48 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
8-Port Gigabit unmanaged Switch, 8 Gigabit RJ45 Ports ,Steel Case
Wireless bridge CPE, 5GHz 867Mbps, supports 11ac protocol, IP65, gain up to 23dBi, 1*10/100/1000M port, the base station can be paired with up to 32 CPEs
