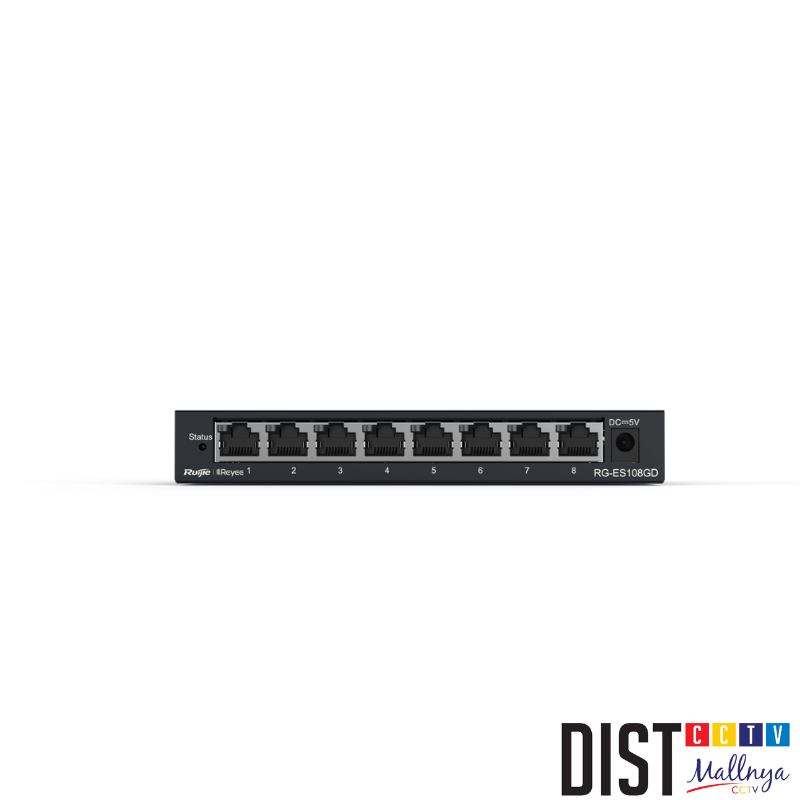

8-Port Gigabit unmanaged Switch, 8 Gigabit RJ45 Ports ,Steel Case
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
8-Port Gigabit unmanaged Switch, 8 Gigabit RJ45 Ports ,Steel Case
10-Port 100Mbps, 8 of the ports support PoE/PoE+ power supply. Max PoE power budget is 110W, Steel Case
Gigabit BIDI Transceiver - TX1550/RX1310, 20km, LC, industrial design Operation tempreture -40 - 85℃, support DDM, Hot swap, 5 Years Warranty
24-Port Gigabit Layer 2+ Cloud Managed Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
24 x SFP ports with 8 combo RJ45 ports, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
AC1300 Wave 2 Dual band (2.4GHz&5GHz) indoor access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
2× 10/100/1000Mbps LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 13 Watts
TX power: 2.4GHz @20dBm, 5GHz @20dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA2, Router mode, Mesh, Captive portal, Master AP in Selforganizing Network , Cloud/Eweb/APP managementÂ
9-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 1 x SFP port
CPU 880MHz * 2, RAM 256MB, Flash 32MB, recommended 200 concurrent users
Max. bandwidth 1000Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication
20-Port Gigabit Smart Cloud Mananged PoE Switch, 2 SFP and 2 RJ45 uplink, 3 Years Warranty
16 x 10/100/1000Mbps PoE+ ports, Max. budget 250Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
BE3600 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @688Mbps, 5 GHz: 5dBi @2882Mbps, Max. 8 SSID
1× 2.5G/Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 14 Watts
TX power: 2.4GHz @27dBm, 5GHz @25dBm
Max. STAs: 256, recommended STAs: 100 STAs
Support MLO, MRU, Preamble Puncturing, 4K QAM, Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x,
SNMP, Router mode, Standalone Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
5-Port Gigabit Smart Cloud Mananged Switch, 1 RJ45 uplink port, 3 Years Warranty
4 x 10/100/1000Mbps ports, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
10-Port Gigabit Smart Cloud Mananged PoE Switch, 2 uplink with 1 SFP combo port, 3 Years Warranty
8 x 10/100/1000Mbps PoE+ ports, Max. budget 120Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
10GBASE-LR, SFP+ Transceiver (1310nm, 10km, LC
24-Port Gigabit Layer 2+ Cloud Managed Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
24 x 10/100/1000Mbps ports, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
10GBASE SFP+ Optical Stack Cable (included both side transceivers), 5 Meter
10-Port Gigabit Cloud Managed Router, Max. 9 WAN, 4 * 10/100/1000Mbps ports, 4 * 10/100/1000/2500 Mbps ports, 2
* 10G SFP+ ports
Max. bandwidth 3000Mbps, SD-WAN throughput 1100Mbps, at most 300 branches
CPU 1.8GHz * 4 core processors, RAM 2GB, Flash 256MB, recommended 700 concurrent users, Max. 150,000 concurrent
sessions.
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open/WireGuard VPN, Inter-VLAN routing,
DHCP server, PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF, BGP
9-Port Gigabit Smart Cloud Mananged PoE Switch, 1 RJ45 uplink port, 3 Years Warranty
8 x 10/100/1000Mbps PoE+ ports, 1 RJ45 uplink, Max. budget 120Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
AX3000 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP65
2.4 GHz: 4dBi @573Mbps, 5 GHz: 6.5dBi @2402Mbps, Max. 8 SSID, 160MHz
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE / 24V/48V Passive PoE, power consumption < 16 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100/1000Mbps WAN Ports (PoE-In), 4 × 10/100/1000Mbps LAN Ports (1 PoE-Out)
803af PoE, power consumption < 8 Watts
TX power: 2.4GHz @19dBm, 5GHz @18dBm
Max. STAs: 110, recommended STAs: 80 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network ,
Cloud/Eweb/APP management
