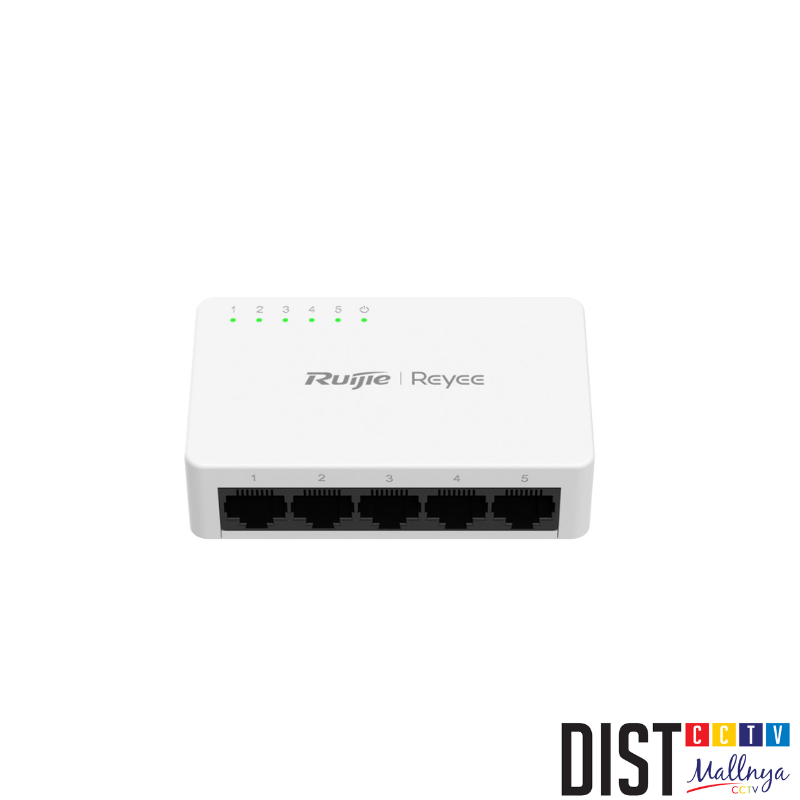

5-Port Gigabit unmanaged Switch, 5 Gigabit RJ45 Ports , Plastic Case
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
5-Port Gigabit unmanaged Switch, 5 Gigabit RJ45 Ports , Plastic Case
AC/DC 240W DIN-Rail Power Supply for industrial switch, support both NIS2 and NIS3 series
5-Port Gigabit Cloud Managed Router, Max. 2 x Gigabit WAN, 4 PoE ports, budget 54W
CPU 880MHz * 2, RAM 128MB, Flash 32MB, recommended 100 concurrent users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
6-Port 2.5Gig Smart Cloud Mananged PoE Switch, 1 * SFP+ and 1 * 2.5G uplink, 3 Years Warranty
4 x 10/100/1000/2500Mbps PoE+ ports, Max. budget 70Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
1-port PoE adapter (1000Base-T, 52V, 15.6W), applies to RG-RAP2200(E)/(F), RG-RAP62, RG-RAP2260(G), RG-RAP52-OD,
RG-RAP6202(G), RG-RAP6262(G
5-Port All-in-One Cloud Managed Router, Max. 4 x Gigabit WAN, 5 external antennas, 1 USB3.0
AX3000, 2X2 MU-MIMO Dual Band, 2.4GHz: 5dBi@574Mbps, 5GHz: 5dBi@2402Mbps
CPU 1.3GHz, RAM 512MB, Flash 128MB, recommended 150 concurrent users, max. 80 Wi-Fi users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 32 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, User/Bandwidth/Voucher mangement, Captive portal,
NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server, PPPoE Server, Basic firewall,
Cloud/APP/Eweb management, SNMP, Mesh
24-Port Gigabit unmanaged Switch, 24 Gigabit RJ45 Ports ,Steel Case
24-Port Gigabit Layer 2+ Cloud Managed PoE+ Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
24 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
Wireless bridge base station, 5GHz 867Mbps, IP55, can be used with external antennas, 2*10/100/1000M ports,1*12V DC port, supports installated with antenna, and one station supports up to 32 CPEs
1-port PoE adapter (1000Base-T, PoE+/ 802.3at)
10GBASE SFP+ Optical Stack Cable (included both side transceivers), 3 Meter
AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100/1000Mbps WAN Ports (PoE-In), 4 × 10/100/1000Mbps LAN Ports (1 PoE-Out)
803af PoE, power consumption < 8 Watts
TX power: 2.4GHz @19dBm, 5GHz @18dBm
Max. STAs: 110, recommended STAs: 80 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network ,
Cloud/Eweb/APP management
A supporting Sector external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream 2x2 twospace stream technology, antenna gain is 16dBi, antenna horizontal angle is 120 °, vertical angle is 10°, it can be used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 5KM.
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 4 PoE ports, budget 60W
CPU 1.35GHz * 2, RAM 512MB, Flash 256MB, recommended 300 concurrent users
Max. bandwidth 1500Mbps, SD-WAN throughput 300Mbps, at most 64 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
Code S, SD-WAN license apply for EG100/200/300 Series, 1 device, 1 year. RMA supported
HQ+Branches lower than 4, free license
Apply models:
EG105G-V3, EG105G-P-V3, EG105GW(T), EG105GW-X
EG209GS, EG210G-P-V3, RG-EG305GH-P-E, EG310GH-P-E, EG310GH-E
20-Port Gigabit Smart Cloud Mananged PoE Switch, 2 SFP and 2 RJ45 uplink, 3 Years Warranty
16 x 10/100/1000Mbps PoE+ ports, Max. budget 130Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
16-Port Gigabit Smart Cloud Mananged Switch, 3 Years Warranty
16 x 10/100/1000Mbps ports, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
