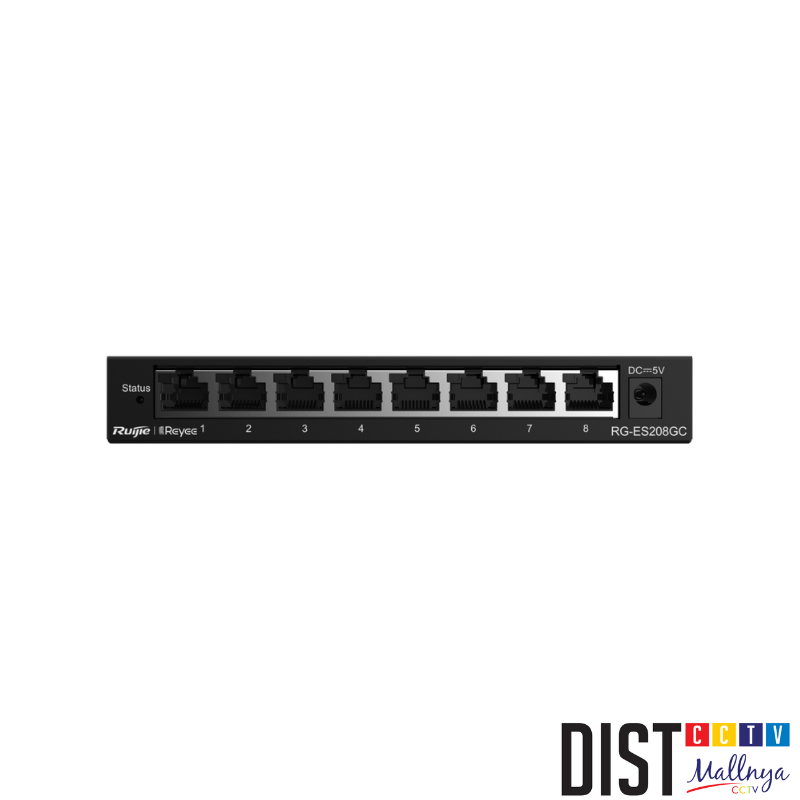

8-Port Gigabit Smart Cloud Mananged Switch, 3 Years Warranty
8 x 10/100/1000Mbps ports, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
8-Port Gigabit Smart Cloud Mananged Switch, 3 Years Warranty
8 x 10/100/1000Mbps ports, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
16-Port Gigabit unmanaged Switch, 16 Gigabit RJ45 Ports ,Steel Case
10-Port 100Mbps, 8 of the ports support PoE/PoE+ power supply. Max PoE power budget is 110W, Steel Case
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 8 PoE ports, budget 110W
CPU 880MHz * 2, RAM 256MB, Flash 32MB, recommended 200 concurrent users
Max. bandwidth 1000Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
28-Port Gigabit Smart Cloud Mananged PoE Switch, 2 SFP and 2 RJ45 uplink, 3 Years Warranty
24 x 10/100/1000Mbps PoE+ ports, Max. budget 250Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
24-Port Gigabit Layer 2+ Cloud Managed PoE+ Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
24 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
10GBASE-LR, SFP+ Transceiver (1310nm, 10km, LC
Wireless bridge CPE, 5GHz 867Mbps, supports 11ac protocol, IP65, gain up to 23dBi, 1*10/100M port, the base station can be paired with up to 32 CPE
5GHz 13dBi 3KM Outdoor wireless bridge, up to 867Mbps throughput, IP55
H: 30°, V: 30°, PTMP (upto 5), 1 unit per package
3 x 10/100Mbps ports (2 x PoE-Out), Support 802.3af/at, 12V DC and 24V passive PoE, PoE injector included
Support mix mode with RG-EST310 V2, RG-EST350 V2, RG-EST350G, RG-EST450G, AirMetro
Support TDMA, SON, Cloud/APP/Eweb management, one click pairing
AX1800 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @573Mbps, 5 GHz: 5dBi @1201Mbps, Max. 8 SSID
1× Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 12.95 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 256, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
5-Port All-in-One Cloud Managed Router, Max. 4 x Gigabit WAN, 5 external antennas, 1 USB3.0
AX3000, 2X2 MU-MIMO Dual Band, 2.4GHz: 5dBi@574Mbps, 5GHz: 5dBi@2402Mbps
CPU 1.3GHz, RAM 512MB, Flash 128MB, recommended 150 concurrent users, max. 80 Wi-Fi users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 32 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, User/Bandwidth/Voucher mangement, Captive portal,
NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server, PPPoE Server, Basic firewall,
Cloud/APP/Eweb management, SNMP, Mesh
48-Port Gigabit Layer 2+ Cloud Managed PoE+ Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
48 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 84 PoE ports, budget 110W
CPU 1.35GHz * 2, RAM 512MB, Flash 256MB, recommended 300 concurrent users
Max. bandwidth 1500Mbps, SD-WAN throughput 300Mbps, at most 64 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100/1000Mbps WAN Ports (PoE-In), 4 × 10/100/1000Mbps LAN Ports (1 PoE-Out)
803af PoE, power consumption < 8 Watts
TX power: 2.4GHz @19dBm, 5GHz @18dBm
Max. STAs: 110, recommended STAs: 80 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network ,
Cloud/Eweb/APP management
AX3000 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP65
2.4 GHz: 4dBi @573Mbps, 5 GHz: 6.5dBi @2402Mbps, Max. 8 SSID, 160MHz
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE / 24V/48V Passive PoE, power consumption < 16 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
6-Port Gigabit Cloud Managed Layer 2 Industrial Switch, with 2 x SFP ports, IP40, 5 Years Warranty
4 x 10/100/1000Mbps ports, 3 PoE/PoE+ (30W) ports and 1 PoE++ port (60W), Max. budget 180W
Max. 16 VLANs, Dual DC power supply support, operation tempreture: -40℃ - 75℃, DIN-Rail installation
Support ERPS, Ports isolation, Camera detection, PoE Watchdog, SON, Cloud/Eweb/App management
AX3200 Dual band (2.4GHz&5GHz) access points, 4x4 MU-MIMO
2.4 GHz: 3dBi @800Mbps, 5 GHz: 3dBi @2402Mbps, Max. 8 SSID, 160MHz
1× 2.5/1 Gigabit Ports (PoE-In), 803at/802.3af PoE, DC 12V/1.5A, power consumption < 25.4 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 120 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
