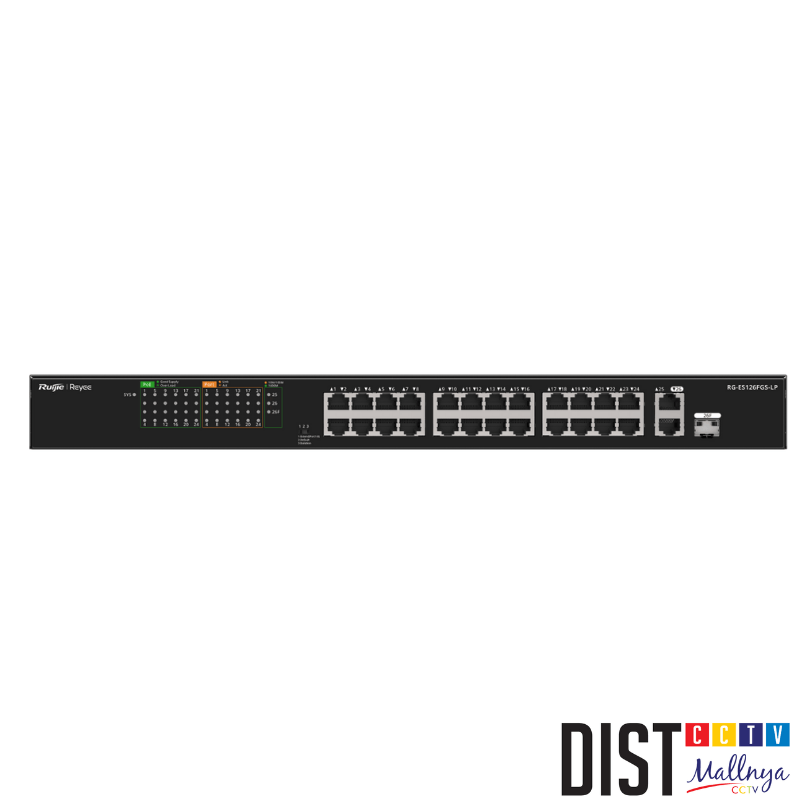

24-Port 100Mbps + 1 Uplink Port 1000Mbps + 1 Gigabit RJ45/SFP combo Ports, 24 of the ports support PoE/PoE+ power supply. Max PoE power budget is 180W, Steel Case
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
24-Port 100Mbps + 1 Uplink Port 1000Mbps + 1 Gigabit RJ45/SFP combo Ports, 24 of the ports support PoE/PoE+ power supply. Max PoE power budget is 180W, Steel Case
24-Port 100Mbps + 1 Uplink Port 1000Mbps + 1 Gigabit RJ45/SFP combo Ports, 24 of the ports support PoE/PoE+ power supply. Max PoE power budget is 370W, Steel Case
16-Port Gigabit Smart Cloud Mananged Switch, 3 Years Warranty
16 x 10/100/1000Mbps ports, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
10-Port Gigabit Cloud Managed Layer 2 Industrial Switch, with 2 x SFP ports, IP40, 5 Years Warranty
8 x 10/100/1000Mbps ports, 7 PoE/PoE+ (30W) ports and 1 PoE++ port (60W), Max. budget 300W
Max. 16 VLANs, Dual DC power supply support, operation tempreture: -40℃ - 75℃, DIN-Rail installation
Support ERPS, Ports isolation, Camera detection, PoE Watchdog, SON, Cloud/Eweb/App management
AC1300 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP65
2.4 GHz: 3dBi @400Mbps, 5 GHz: 4dBi @867Mbps, Max. 8 SSID
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE / 24V Passive PoE, power consumption< 13.5W
TX power: 2.4GHz @22dBm, 5GHz @21dBm
Max. STAs: 110, recommended STAs: 80 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
1-port PoE adapter (1000Base-T, 802.3af)
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 8 PoE ports, budget 110W
CPU 880MHz * 2, RAM 256MB, Flash 32MB, recommended 200 concurrent users
Max. bandwidth 1000Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
Wireless bridge base station, 5GHz 867Mbps, IP55, can be used with external antennas, 2*10/100/1000M ports,1*12V DC port, supports installated with antenna, and one station supports up to 32 CPEs
48-Port Gigabit Layer 2+ Cloud Managed PoE+ Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
48 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
1000BASE-LX mini GBIC (1310nm), 10km, industrial design Operation tempreture -40 - 85℃, support DDM, Hot swap, 5 Years Warranty
9-Port Gigabit Smart Cloud Mananged PoE Switch, 1 RJ45 uplink port, 3 Years Warranty
8 x 10/100/1000Mbps PoE+ ports, 1 RJ45 uplink, Max. budget 120Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 4 PoE ports, budget 60W
CPU 1.35GHz * 2, RAM 512MB, Flash 256MB, recommended 300 concurrent users
Max. bandwidth 1500Mbps, SD-WAN throughput 300Mbps, at most 64 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
AX3200 Dual band (2.4GHz&5GHz) access points, 4x4 MU-MIMO
2.4 GHz: 3dBi @800Mbps, 5 GHz: 3dBi @2402Mbps, Max. 8 SSID, 160MHz
1× 2.5/1 Gigabit Ports (PoE-In), 803at/802.3af PoE, DC 12V/1.5A, power consumption < 25.4 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 120 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
5-Port Gigabit unmanaged Switch, 5 Gigabit RJ45 Ports ,Steel Case
24-Port Gigabit Layer 2+ Cloud Managed PoE+ Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
24 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
BE3600 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @688Mbps, 5 GHz: 5dBi @2882Mbps, Max. 8 SSID
1× 2.5G/Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 14 Watts
TX power: 2.4GHz @27dBm, 5GHz @25dBm
Max. STAs: 256, recommended STAs: 100 STAs
Support MLO, MRU, Preamble Puncturing, 4K QAM, Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x,
SNMP, Router mode, Standalone Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
5-Port All-in-One Cloud Managed Router, Max. 4 x Gigabit WAN
AC1300, 2X2 MU-MIMO Dual Band, 2.4GHz: 3dBi@400Mbps, 5GHz: 4dBi@867Mbps
CPU 880MHz, RAM 256MB, Flash 32MB, recommended 150 concurrent users, max. 60 Wi-Fi users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, User/Bandwidth/Voucher mangement, Captive portal,
NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server, PPPoE Server, Basic firewall,
Cloud/APP/Eweb management, SNMP, Mesh
