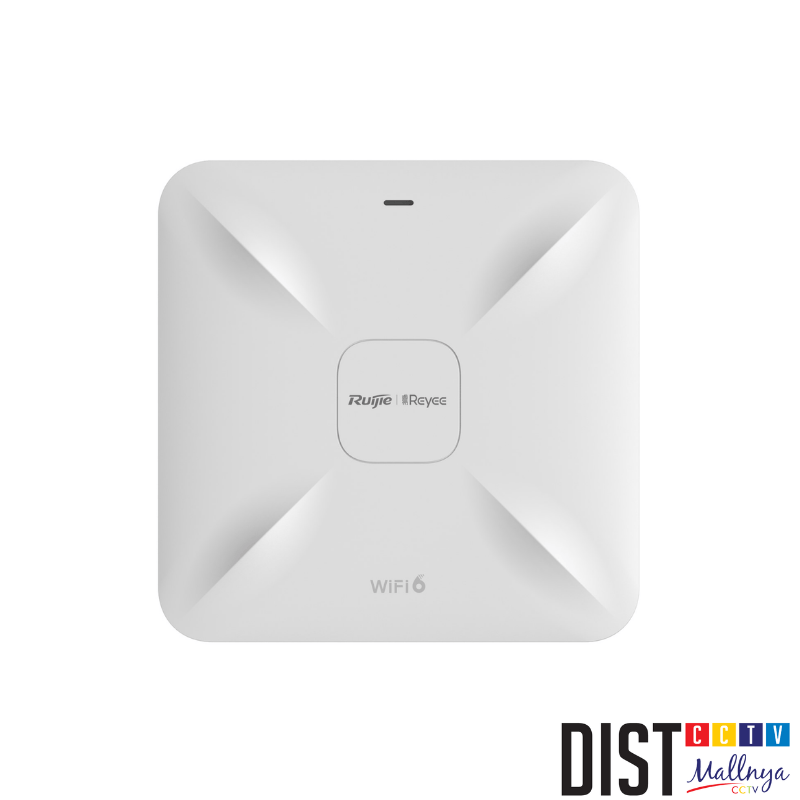

AX1800 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 15.5 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
AX1800 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 15.5 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
16-Port Gigabit unmanaged Switch, 16 Gigabit RJ45 Ports ,Steel Case
10GBASE SFP+ Optical Stack Cable (included both side transceivers), 5 Meter
5GHz 15dBi 5KM Outdoor wireless bridge, up to 867Mbps throughput, IP55
H: 120°, V: 13°, PTMP (upto 16), 2 units per package
3 x 10/100/1000Mbps ports, Support 802.3af/at, 12V DC and 24V passive PoE, PoE injector included
Support mix mode with RG-EST310 V2, RG-EST350 V2, RG-EST330F-P, RG-EST350G, AirMetro
Support TDMA, SON, 2.4GHz mgmt SSID, Auto pairing, Cloud/APP/Eweb managemen
6-Port 100Mbps, 4 of the ports support PoE/PoE+ power supply. Max PoE power budget is 54W, Steel Case
16-Port 1000Mbps + 2 Gigabit SFP Ports, 16 of the ports support PoE/PoE+ power supply. Max PoE power budget is 247W, Steel Case
8-Port Gigabit unmanaged Switch, 8 Gigabit RJ45 Ports , Plastic Case
10-Port Gigabit Smart Cloud Mananged PoE Switch, 2 uplink with 1 SFP combo port, 3 Years Warranty
8 x 10/100/1000Mbps PoE+ ports, Max. budget 120Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
10-Port Gigabit Layer 2 Cloud Managed Switch, with 2 x SFP ports, 5 Years Warranty
8 x 10/100/1000Mbps ports, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
1-port PoE adapter (1000Base-T, PoE+/ 802.3at)
10-Port Gigabit Layer 2 Cloud Managed PoE+ Switch, with 2 x SFP ports, 5 Years Warranty
8 x 10/100/1000Mbps PoE+ ports, Max. budget 125 Watts, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
5-Port Gigabit Cloud Managed Router, Max. 2 x Gigabit WAN
CPU 880MHz * 2, RAM 128MB, Flash 32MB, recommended 100 concurrent users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
10-Port 100Mbps, 8 of the ports support PoE/PoE+ power supply. Max PoE power budget is 110W, Steel Case
1-port PoE adapter (1000Base-T, 52V, 31.2W), applies to RG-RAP2266, RG-RAP2260(E), RG-RAP72Pro, RG-RAP73Pro, RGRAP62-OD, RG-RAP6262(G), RG-RAP6262
Wireless bridge CPE, 5GHz 867Mbps, supports 11ac protocol, IP65, gain up to 23dBi, 1*10/100/1000M port, the base station can be paired with up to 32 CPEs
24-Port Gigabit Layer 2 Cloud Managed PoE+ Switch, with 4 x SFP ports, 5 Years Warranty
24 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
Switch industrial biasanya dipasang di lokasi dengan kondisi kelistrikan yang tidak selalu stabil — pabrik, ruang panel, atau instalasi outdoor yang jauh dari sumber daya utama. RG-NIS-PA240-54 hadir sebagai power supply terpisah berkapasitas 240W yang dipasang pada rel DIN standar, memberi fleksibilitas untuk mengganti atau menambah kapasitas daya tanpa harus mengganti unit switch secara keseluruhan. Karena dirancang khusus mendukung seri NIS2 dan NIS3, power supply ini jadi pilihan yang tepat untuk yang sudah menggunakan switch dari kedua seri tersebut dan membutuhkan unit daya cadangan atau pengganti yang sesuai spesifikasi.
Spesifikasi :
1. AC/DC 240W DIN-Rail Power Supply
Kapasitas daya 240W ini dirancang untuk mengonversi listrik AC menjadi DC yang dibutuhkan perangkat jaringan, dengan bentuk fisik yang bisa dipasang langsung pada rel DIN standar di panel listrik atau rak peralatan industrial.
2. Mendukung NIS2 dan NIS3 Series
Kompatibilitas ini memastikan power supply bisa langsung dipasangkan dengan switch industrial Ruijie dari kedua seri tersebut tanpa masalah kesesuaian tegangan atau konektor.
