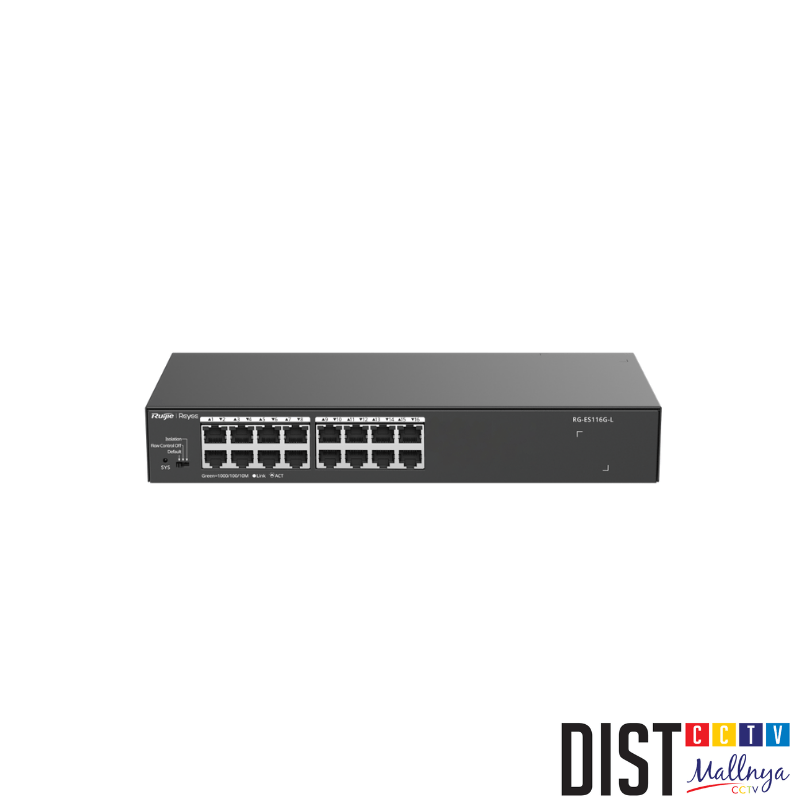

16-Port Gigabit unmanaged Switch, 16 Gigabit RJ45 Ports ,Steel Case
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
16-Port Gigabit unmanaged Switch, 16 Gigabit RJ45 Ports ,Steel Case
10-Port 100Mbps, 8 of the ports support PoE/PoE+ power supply. Max PoE power budget is 110W, Steel Case
24-Port Gigabit unmanaged Switch, 24 Gigabit RJ45 Ports ,Steel Case
AX1800 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @573Mbps, 5 GHz: 5dBi @1201Mbps, Max. 8 SSID
1× Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 12.95 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 256, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
6-Port 2.5Gig Smart Cloud Mananged PoE Switch, 1 * SFP+ and 1 * 2.5G uplink, 3 Years Warranty
4 x 10/100/1000/2500Mbps PoE+ ports, Max. budget 70Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
5GHz 16dBi 5KM Outdoor wireless bridge, up to 867Mbps throughput, IP55
H: 31°, V: 14°, PTMP (upto 5), 2 units per package
3 x 10/100/1000Mbps ports, Support 802.3af/at, 12V DC and 24V passive PoE, PoE injector included
Support mix mode with RG-EST310 V2, RG-EST350 V2, RG-EST330F-P, RG-EST450G, AirMetro
Support TDMA, SON, 2.4GHz mgmt SSID, Auto pairing, Cloud/APP/Eweb management
5-Port Gigabit unmanaged Switch, 5 Gigabit RJ45 Ports ,Steel Case
5-Port Gigabit Smart Cloud Mananged PoE Switch, 1 RJ45 uplink port, 3 Years Warranty
4 x 10/100/1000Mbps PoE+ ports, Max. budget 54Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
AC1300 Wave 2 Dual band (2.4GHz&5GHz) indoor access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
2× 10/100Mbps LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 13 Watts
TX power: 2.4GHz @20dBm, 5GHz @20dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA2, Router mode, Mesh, Captive portal, Master AP in Selforganizing Network , Cloud/Eweb/APP management
AX3200 Dual band (2.4GHz&5GHz) access points, 4x4 MU-MIMO
2.4 GHz: 3dBi @800Mbps, 5 GHz: 3dBi @2402Mbps, Max. 8 SSID, 160MHz
1× 2.5/1 Gigabit Ports (PoE-In), 803at/802.3af PoE, DC 12V/1.5A, power consumption < 25.4 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 120 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,
Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 84 PoE ports, budget 110W
CPU 1.35GHz * 2, RAM 512MB, Flash 256MB, recommended 300 concurrent users
Max. bandwidth 1500Mbps, SD-WAN throughput 300Mbps, at most 64 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
Gigabit BIDI Transceiver - TX1550/RX1310, 20km, LC, industrial design Operation tempreture -40 - 85℃, support DDM, Hot swap, 5 Years Warranty
10-Port Gigabit Layer 2 Cloud Managed Switch, with 2 x SFP ports, 5 Years Warranty
8 x 10/100/1000Mbps ports, Max. 4094 VLANs
Support STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP Snooping v1/v2,
SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
BE3600 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @688Mbps, 5 GHz: 5dBi @2882Mbps, Max. 8 SSID
1× 2.5G/Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 14 Watts
TX power: 2.4GHz @27dBm, 5GHz @25dBm
Max. STAs: 256, recommended STAs: 100 STAs
Support MLO, MRU, Preamble Puncturing, 4K QAM, Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x,
SNMP, Router mode, Standalone Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
28-Port Gigabit Smart Cloud Mananged PoE Switch, 2 SFP and 2 RJ45 uplink, 3 Years Warranty
24 x 10/100/1000Mbps PoE+ ports, Max. budget 250Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
1-port PoE adapter (1000Base-T, 802.3af)
48-Port Gigabit Layer 2+ Cloud Managed PoE+ Switch, with 4 x 10G SFP+ ports, 5 Years Warranty
48 x 10/100/1000Mbps PoE+ ports, Max. budget 370Watts, Max. 4094 VLANs
Support static routing, STP/RSTP/MSTP, Jumbo Frame, Loop prevention, LLDP, LACP, ACL, SON, CPP, Voice VLAN, IGMP
Snooping v1/v2, SNMP v1/v2c/v3, DHCP Snooping, IPv6, 802.1x, Cloud/Eweb/App management
