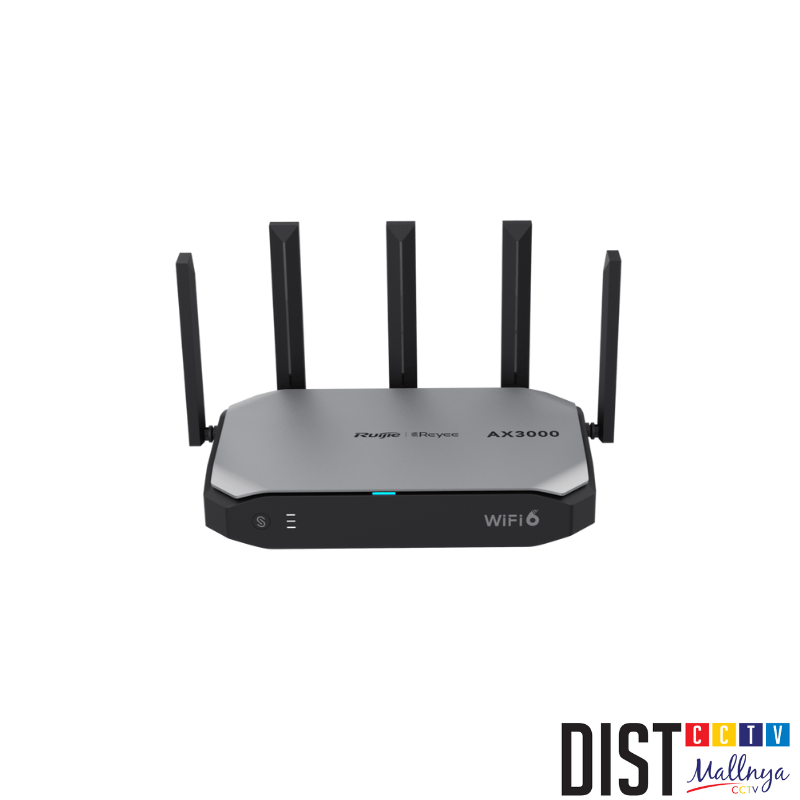

5-Port All-in-One Cloud Managed Router, Max. 4 x Gigabit WAN, 5 external antennas, 1 USB3.0
AX3000, 2X2 MU-MIMO Dual Band, 2.4GHz: 5dBi@574Mbps, 5GHz: 5dBi@2402Mbps
CPU 1.3GHz, RAM 512MB, Flash 128MB, recommended 150 concurrent users, max. 80 Wi-Fi users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 32 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, User/Bandwidth/Voucher mangement, Captive portal,
NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server, PPPoE Server, Basic firewall,
Cloud/APP/Eweb management, SNMP, Mesh
Ruijie Networks adalah merek teknologi jaringan global asal Tiongkok yang berfokus pada pengembangan solusi jaringan cerdas dan sistem keamanan digital. Dikenal dengan inovasi tinggi, Ruijie menghadirkan beragam produk unggulan seperti router, access point (Wi-Fi), switch, gateway, dan sistem manajemen cloud yang digunakan oleh ribuan perusahaan, institusi pendidikan, hingga sektor pemerintahan di seluruh dunia.
DIST CCTV memberikan fasilitas sebagai berikut :
5-Port All-in-One Cloud Managed Router, Max. 4 x Gigabit WAN, 5 external antennas, 1 USB3.0
AX3000, 2X2 MU-MIMO Dual Band, 2.4GHz: 5dBi@574Mbps, 5GHz: 5dBi@2402Mbps
CPU 1.3GHz, RAM 512MB, Flash 128MB, recommended 150 concurrent users, max. 80 Wi-Fi users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 32 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, User/Bandwidth/Voucher mangement, Captive portal,
NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server, PPPoE Server, Basic firewall,
Cloud/APP/Eweb management, SNMP, Mesh
6-Port 2.5Gig Smart Cloud Mananged PoE Switch, 1 * SFP+ and 1 * 2.5G uplink, 3 Years Warranty
4 x 10/100/1000/2500Mbps PoE+ ports, Max. budget 70Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
AX1800 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP68
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, power consumption < 13.5 Watts
DC 12V/1.5A, power consumption < 18 Watts
TX power: 2.4GHz @25dBm, 5GHz @26dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management

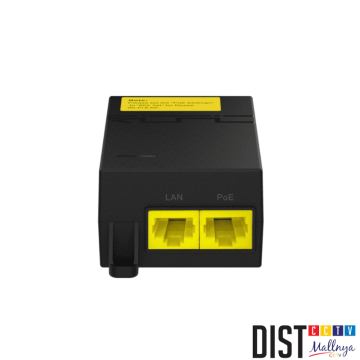

1-port PoE adapter (1000Base-T, 52V, 31.2W), applies to RG-RAP2266, RG-RAP2260(E), RG-RAP72Pro, RG-RAP73Pro, RGRAP62-OD, RG-RAP6262(G), RG-RAP6262
10-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 8 PoE ports, budget 110W
CPU 880MHz * 2, RAM 256MB, Flash 32MB, recommended 200 concurrent users
Max. bandwidth 1000Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
5-Port Gigabit Cloud Managed Router, Max. 2 x Gigabit WAN
CPU 880MHz * 2, RAM 128MB, Flash 32MB, recommended 100 concurrent users
Max. bandwidth 600Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication, OSPF
AC1300 Wave 2 Dual band (2.4GHz&5GHz) indoor access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
2× 10/100/1000Mbps LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 13 Watts
TX power: 2.4GHz @20dBm, 5GHz @20dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA2, Router mode, Mesh, Captive portal, Master AP in Selforganizing Network , Cloud/Eweb/APP managementÂ
AC1300 Wave 2 Dual band (2.4GHz&5GHz) indoor access points, 2x2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
2× 10/100Mbps LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 13 Watts
TX power: 2.4GHz @20dBm, 5GHz @20dBm
Max. STAs: 110, recommended STAs: 40 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA2, Router mode, Mesh, Captive portal, Master AP in Selforganizing Network , Cloud/Eweb/APP management
AC1200 Wave 2 Dual band (2.4GHz&5GHz) indoor access points, 2x2 MU-MIMO
2.4 GHz: 4dBi @300Mbps, 5 GHz: 6dBi @867Mbps, Max. 32 SSID
1× 10/100/1000Mbps LAN Ports (PoE-In), 1 console port, 803af/at PoE, DC 12V/1.5A, power consumption < 13 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 256, recommended STAs: 64 STAs
Support Beamforming, Layer2/3 roaming, Radius, WPA2, SNMP, Router mode, Mesh, Captive portal, Master AP in Selforganizing Network , Cloud/Eweb/APP management
20-Port Gigabit Smart Cloud Mananged PoE Switch, 2 SFP and 2 RJ45 uplink, 3 Years Warranty
16 x 10/100/1000Mbps PoE+ ports, Max. budget 130Watts, Max. 16 VLANs
Support Port isolation, Long range PoE, SON, Loop prevention, Camera detection, Cloud/Eweb/App management
AX3000 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3.5dBi @574Mbps, 5 GHz: 5dBi @2402Mbps, Max. 8 SSID, 160MHz
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE, DC 12V/2A, power consumption < 18 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 110 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, SNMP, Router mode, Standalone Captive portal, Mesh, Master AP
in Self-organizing Network , Cloud/Eweb/APP management
1-port PoE adapter (1000Base-T, 52V, 15.6W), applies to RG-RAP2200(E)/(F), RG-RAP62, RG-RAP2260(G), RG-RAP52-OD,
RG-RAP6202(G), RG-RAP6262(G
AX3000 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP65
2.4 GHz: 4dBi @573Mbps, 5 GHz: 6.5dBi @2402Mbps, Max. 8 SSID, 160MHz
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE / 24V/48V Passive PoE, power consumption < 16 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
AC1300 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP65
2.4 GHz: 3dBi @400Mbps, 5 GHz: 4dBi @867Mbps, Max. 8 SSID
1× Gigabit LAN Ports (PoE-In), 803at/802.3af PoE / 24V Passive PoE, power consumption< 13.5W
TX power: 2.4GHz @22dBm, 5GHz @21dBm
Max. STAs: 110, recommended STAs: 80 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Dynamic VLAN, WPA3, 802.1x, SNMP, Router mode, Standalone
Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
BE3600 Dual band (2.4GHz&5GHz) access points, 2x2 MU-MIMO
2.4 GHz: 3dBi @688Mbps, 5 GHz: 5dBi @2882Mbps, Max. 8 SSID
1× 2.5G/Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 14 Watts
TX power: 2.4GHz @27dBm, 5GHz @25dBm
Max. STAs: 256, recommended STAs: 100 STAs
Support MLO, MRU, Preamble Puncturing, 4K QAM, Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x,
SNMP, Router mode, Standalone Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
AC1300 Dual band (2.4GHz&5GHz) outdoor access points, 2x2 MU-MIMO, IP68
2.4 GHz: 3dBi @400Mbps, 5 GHz: 4dBi @867Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, DC 12V/1.5A , power consumption< 13.5W
TX power: 2.4GHz @26dBm, 5GHz @27dBm
Max. STAs: 110, recommended STAs: 96 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Router mode, Captive portal, Mesh, Master AP in Self-organizing
Network , Cloud/Eweb/APP management
9-Port Gigabit Cloud Managed Router, Max. 4 x Gigabit WAN, 1 x SFP port
CPU 880MHz * 2, RAM 256MB, Flash 32MB, recommended 200 concurrent users
Max. bandwidth 1000Mbps, SD-WAN throughput 80Mbps, at most 8 branches
Support Multi-WAN Load balancing, SD-WAN, Application control, WAN port Quota Limitation, User/Bandwidth/Voucher
mangement, Captive portal, NAT Traversal, Reyee DDNS, L2TP/PPTP/IPSec/Open VPN, Inter-VLAN routing, DHCP server,
PPPoE Server, Basic firewall, Cloud/APP/Eweb management, SNMP, 802.1X authentication
